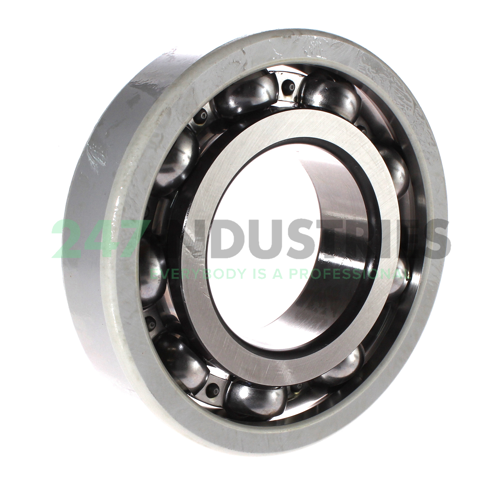

6319-J20AB-C3 FAG

All dimensions

1. Inner (d) MM 95
2. Outer (D) MM 200
3. Width (B) MM 45
4. Inner (d) Inch 3.7402
5. Outer (D) Inch 7.874
6. Width (B) Inch 1.7717
7. Width (b) mm 45

Suffix description

1. J20AB Current Insulation, Outer Ring Ceramic Coated, Breakdown Voltage DC: 1.000 V, Layer Thickness 100 μm, Ohmic Resistance: 50 MΩ. Speciality Humid Environments
2. C3 Internal Clearance Larger Than Normal

Technical details

1. Availability 8 pcs on Wed 8 Jul
2. Brand FAG
3. Item number 6319-J20AB-C3 FAG
4. Also known as 0704956880030

5. EAN 4047643063746
6. Category Deep Groove Ball Bearings Single Row

Weight and Dimensions

1. Weight (kg) 6.09

Product Properties

1. Bore C - Cylindrical Bore
2. Seal No Seal
3. Cage Type S - Steel or Standard Cage
4. External Modification No External Modification
5. Radial Internal Play C3 Internal Play (Higher than Cn)
6. Precision Standard Precision
7. Lubrication Standard Lubrication
8. Heat Stabilization No Heat Stabilization - Temperatures up to 120 °C
9. Special Treatment J20AB

Data from Schaeffler (medias)

1. Radial Static Load Rating C0r (N) 113000
2. Radial Dynamic Load Rating Cr (N) 154000
3. Limiting speed (n G) 4600
4. Reference speed (n ϑr) 4950
5. ECLASS number 23-05-08-01
6. ECLASS2 number 23-05-08-01
7. Medias description Deep groove ball bearing 63..-J20AB, single row, cf. DIN 625-1
