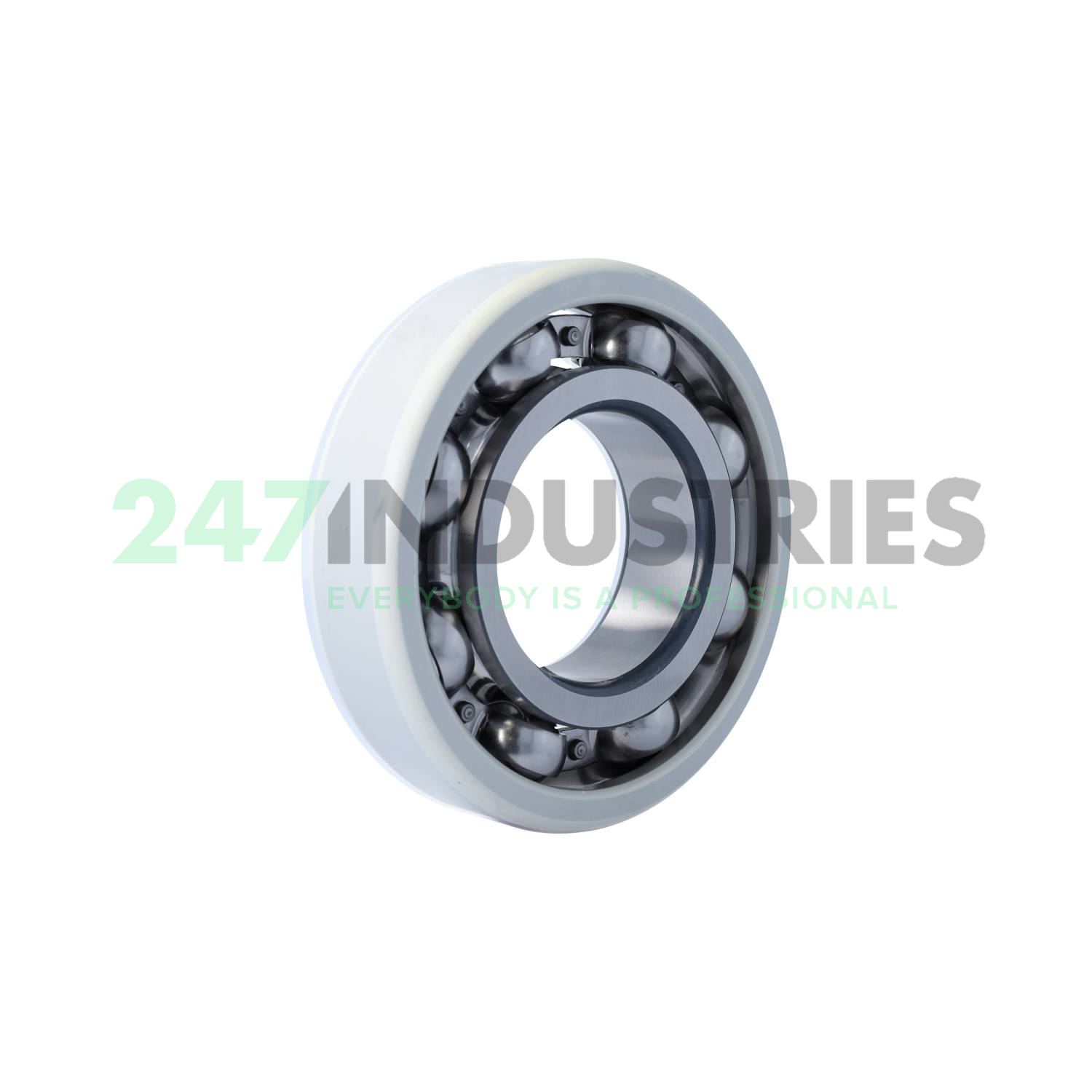

6317-J20AB-C4 FAG

All dimensions

1. Inner (d) MM 85
2. Outer (D) MM 180
3. Width (B) MM 41
4. Inner (d) Inch 3.3465
5. Outer (D) Inch 7.0866
6. Width (B) Inch 1.6142
7. Width (b) mm 41

Suffix description

1. J20AB Puncture Voltage: 1.000vDC - Operating Environment: Dry, Damp - Layer Thickness: 100μm - Possible Dimensions: 70mm–1400mm Outside Diameter
2. C4 Bearing Internal Clearance Greater Than C3

Technical details

1. Availability 0 pcs
2. Brand FAG
3. Item number 6317-J20AB-C4 FAG
4. Also known as 0704899550040

5. EAN 4047643170031
6. Category Deep Groove Ball Bearings Single Row

Weight and Dimensions

1. Weight (kg) 4.15

Product Properties

1. Bore C - Cylindrical Bore
2. Seal No Seal
3. Cage Type S - Steel or Standard Cage
4. External Modification No External Modification
5. Radial Internal Play C4 Internal Play (Higher than C3)
6. Precision Standard Precision
7. Lubrication Standard Lubrication
8. Heat Stabilization No Heat Stabilization - Temperatures up to 120 °C
9. Special Treatment J20AB

Data from Schaeffler (medias)

1. Radial Static Load Rating C0r (N) 97000
2. Radial Dynamic Load Rating Cr (N) 141000
3. Basic static load rating, radial (C 0r) "97000.0000"
4. Limiting speed (n G) 5000
5. Reference speed (n ϑr) 5300
6. ECLASS number 23-05-08-01
7. ECLASS2 number 23-05-08-01

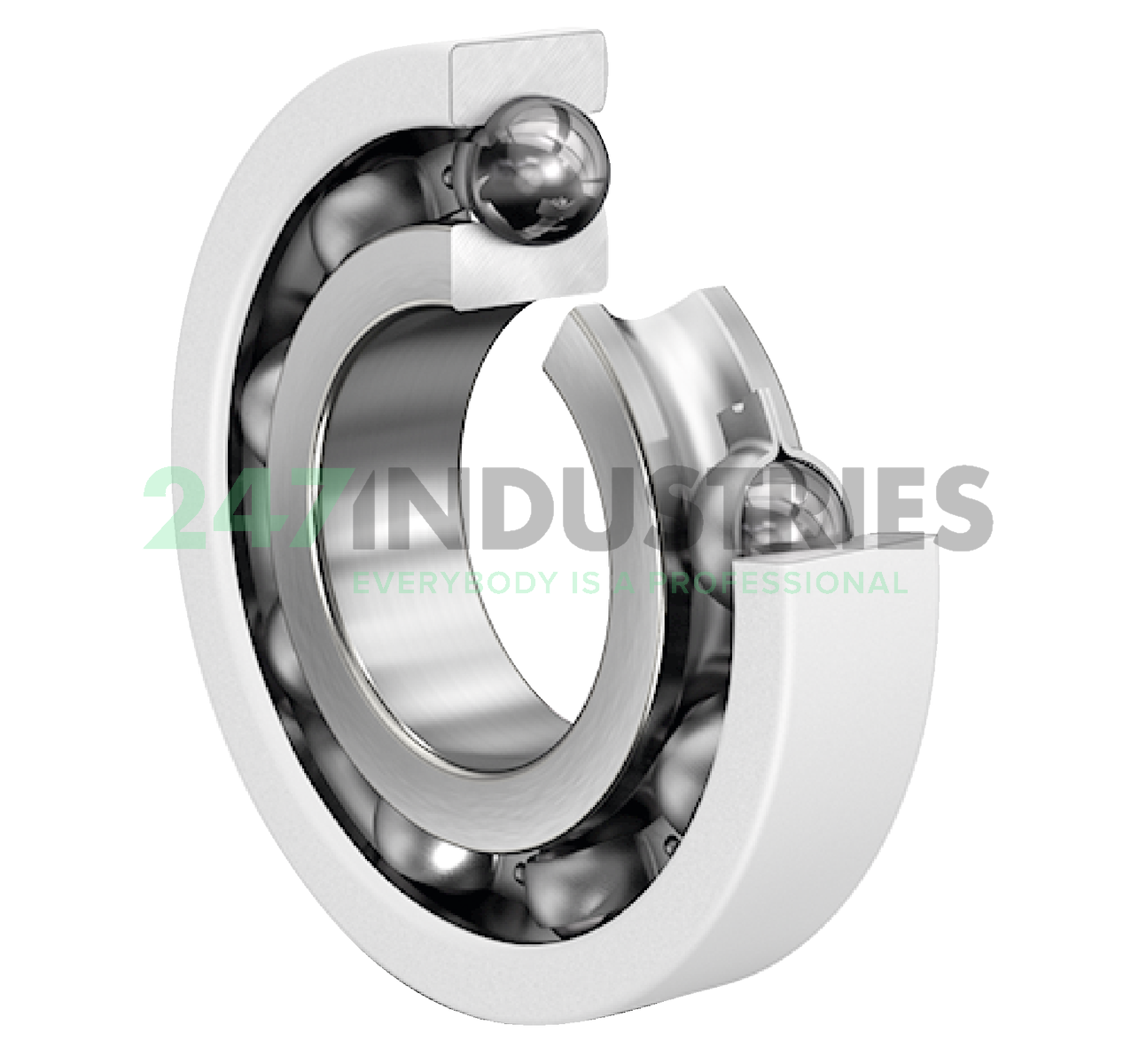

8. Medias description Deep groove ball bearing 63..-J20AB, single row, cf. DIN 625-1
