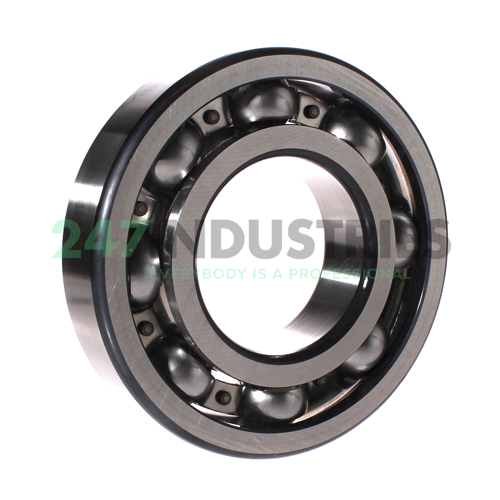

6317 FAG

All dimensions

1. Inner (d) MM 85
2. Outer (D) MM 180
3. Width (B) MM 41
4. Inner (d) Inch 3.3465
5. Outer (D) Inch 7.0866
6. Width (B) Inch 1.6142
7. Width (b) mm 41

Technical details

1. Availability 12 pcs
2. Brand FAG
3. Item number 6317 FAG
4. Also known as 0167242320000

5. EAN 4012801205801
6. Category Deep Groove Ball Bearings Single Row

Weight and Dimensions

1. Weight (kg) 4.15

Product Properties

1. Bore C - Cylindrical Bore
2. Seal No Seal
3. Cage Type S - Steel or Standard Cage
4. External Modification No External Modification
5. Radial Internal Play Cn Normal Internal Play
6. Precision Standard Precision
7. Lubrication Standard Lubrication
8. Heat Stabilization No Heat Stabilization - Temperatures up to 120 °C
9. Special Treatment No Special Treatment

Data from Schaeffler (medias)

1. Radial Static Load Rating C0r (N) 97000
2. Radial Dynamic Load Rating Cr (N) 141000
3. Limiting speed (n G) 5000
4. Reference speed (n ϑr) 5300
5. ECLASS number 23-05-08-01
6. ECLASS2 number 23-05-08-01
7. Medias description Deep groove ball bearings 63, main dimensions to DIN 625-1
