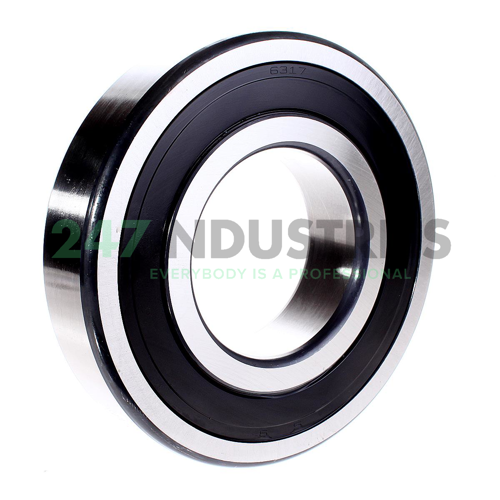

6317-2RSR FAG

All dimensions

1. Outer (D) MM 180
2. Width (B) MM 41
3. Outer (D) Inch 7.0866
4. Width (B) Inch 1.6142

Suffix description

1. 2RSR Rubber Seals At Each Side Of The Bearing

Technical details

1. Availability 45 pcs
2. Brand FAG
3. Item number 6317-2RSR FAG
4. Also known as 0167242400000

5. EAN 4012801263139
6. Category Deep Groove Ball Bearings Single Row

Weight and Dimensions

1. Weight (kg) 4.27

Product Properties

1. Bore C - Cylindrical Bore
2. Seal 2RS - Rubber Seal on Two Sides
3. Cage Type S - Steel or Standard Cage
4. External Modification No External Modification
5. Radial Internal Play Cn Normal Internal Play
6. Precision Standard Precision
7. Lubrication Standard Lubrication
8. Heat Stabilization No Heat Stabilization - Temperatures up to 120 °C
9. Special Treatment No Special Treatment

Data from Schaeffler (medias)

1. Medias description Deep groove ball bearing 63..-2RSR, single row, cf. DIN 625-1
