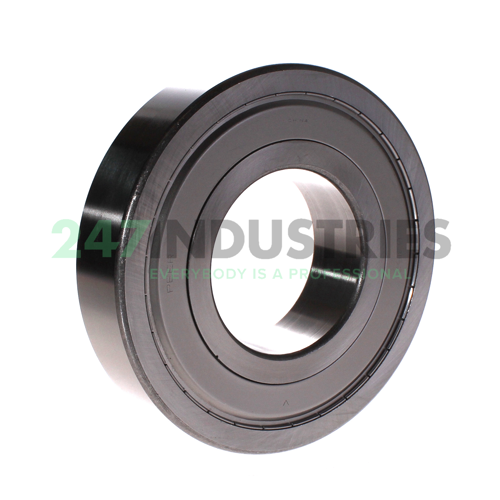

6316ZZD V2 Peer

All dimensions

1. Inner (d) MM 80
2. Outer (D) MM 170
3. Width (B) MM 39
4. Inner (d) Inch 3.1496
5. Outer (D) Inch 6.6929
6. Width (B) Inch 1.5354

Suffix description

1. ZZD Two, Non-Contact Shields
2. V2 Vibration Level, Electric Motor Quality

Technical details

1. Availability 8 pcs
2. Brand Peer
3. Item number 6316ZZD V2 Peer
4. Also known as 6316-2Z

5. Category Deep Groove Ball Bearings Single Row

Weight and Dimensions

1. Weight (kg) 3.81

Product Properties

1. Bore C - Cylindrical Bore
2. Seal ZZ/2Z - Steel Seal on Two Sides
3. Cage Type S - Steel or Standard Cage
4. External Modification No External Modification
5. Radial Internal Play Cn Normal Internal Play
6. Precision Standard Precision
7. Lubrication Standard Lubrication
8. Heat Stabilization No Heat Stabilization - Temperatures up to 120 °C
9. Special Treatment No Special Treatment
