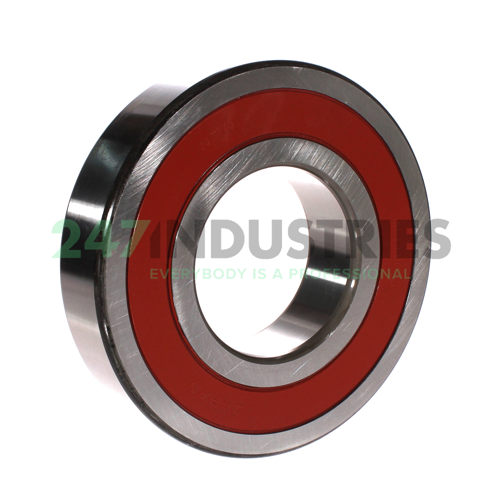

6316LLU C3/5K NTN

All dimensions

1. Inner (d) MM 80
2. Outer (D) MM 170
3. Width (B) MM 39
4. Inner (d) Inch 3.1496
5. Outer (D) Inch 6.6929
6. Width (B) Inch 1.5354

Suffix description

1. LLU (2RS1-SKF)Double-Lip Contact Rubber Seal
2. C3 Internal Clearance Larger Than Normal
3. 5K Grease: Kyodo Yushi / Multemp SRL (-40°C to +150°C)

Technical details

1. Availability 1 pc
2. Brand NTN
3. Item number 6316LLU C3/5K NTN
4. Also known as 6316LLU C3

5. Category Deep Groove Ball Bearings Single Row

Weight and Dimensions

1. Weight (kg) 3.575

Product Properties

1. Bore C - Cylindrical Bore
2. Seal 2RS - Rubber Seal on Two Sides
3. Cage Type S - Steel or Standard Cage
4. External Modification No External Modification
5. Radial Internal Play C3 Internal Play (Higher than Cn)
6. Precision Standard Precision
7. Lubrication Higher and Lower Temperature Grease
8. Heat Stabilization No Heat Stabilization - Temperatures up to 120 °C
9. Special Treatment No Special Treatment
