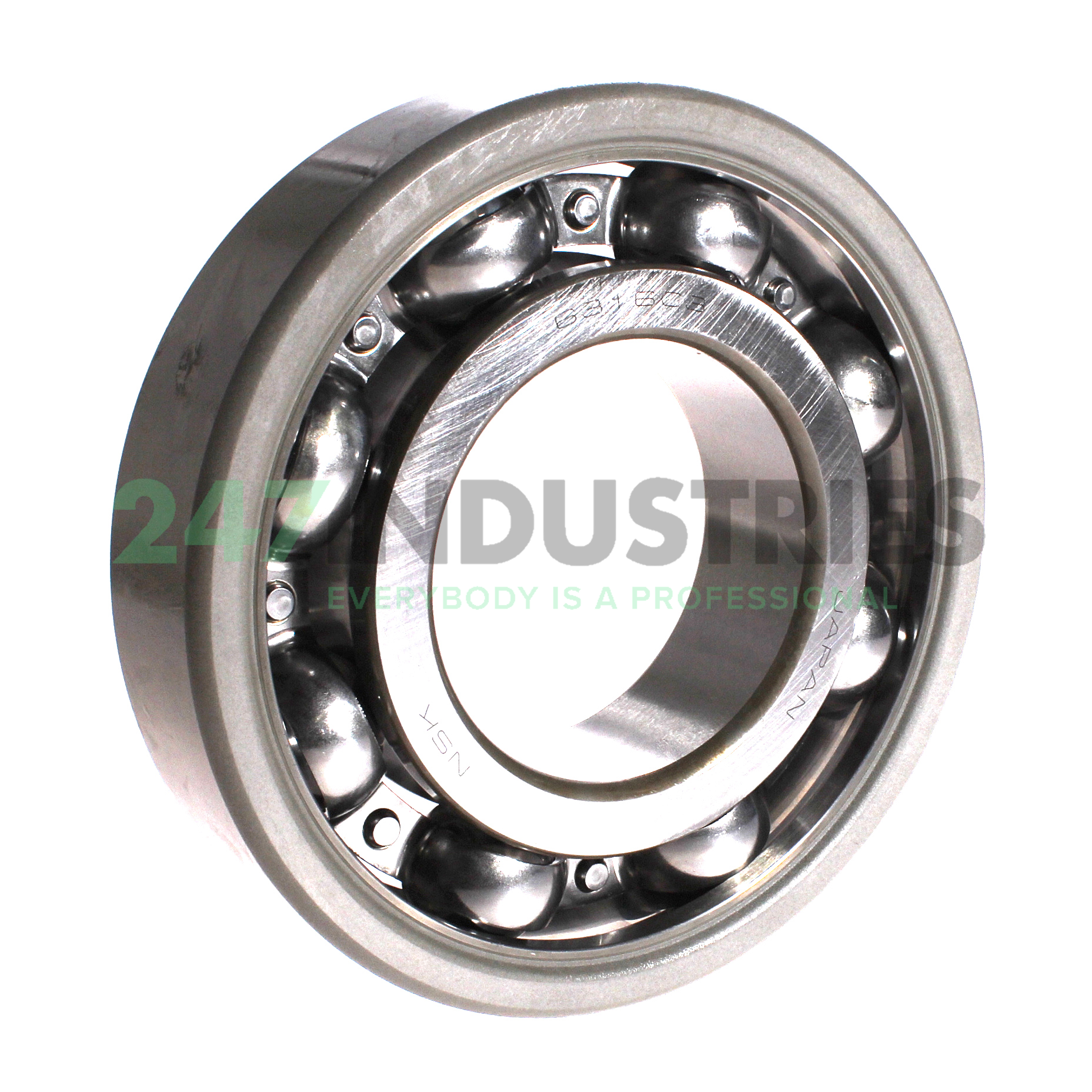

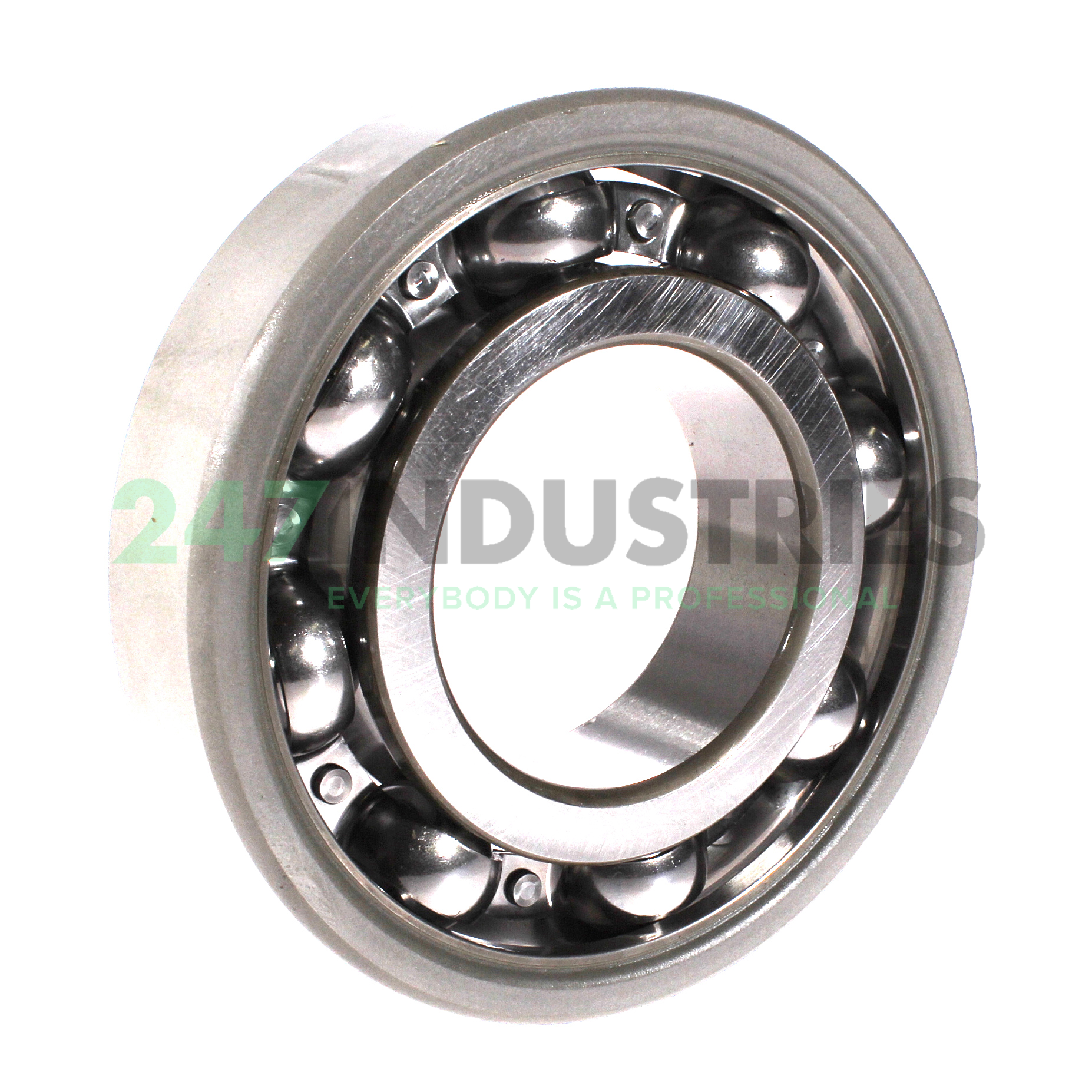

6316HDY2C3 NSK

All dimensions

1. Inner (d) MM 80
2. Outer (D) MM 170
3. Width (B) MM 39
4. Inner (d) Inch 3.1496
5. Outer (D) Inch 6.6929
6. Width (B) Inch 1.5354

Suffix description

1. HDY2 Current Insulated 1000v
2. C3 Internal Clearance Larger Than Normal

Technical details

1. Availability 2 pcs
2. Brand NSK
3. Item number 6316HDY2C3 NSK
4. Also known as 6316/C3VL0241
   6316C3/SQ771
   6316-C3-J20AA

5. EAN 00029176992810
6. Category Deep Groove Ball Bearings Single Row

Weight and Dimensions

1. Weight (kg) 3.69

Product Properties

1. Bore C - Cylindrical Bore
2. Seal No Seal
3. Cage Type S - Steel or Standard Cage
4. External Modification No External Modification
5. Radial Internal Play C3 Internal Play (Higher than Cn)
6. Precision Breakdown Voltage 1000v
7. Lubrication Standard Lubrication
8. Heat Stabilization No Heat Stabilization - Temperatures up to 120 °C
9. Special Treatment No Special Treatment
