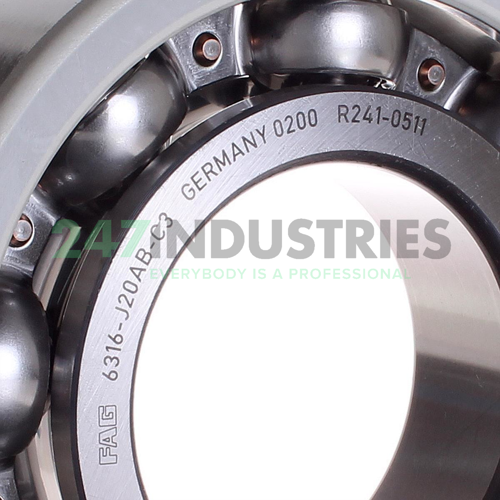

6316-J20AB-C3 FAG

Suffix description

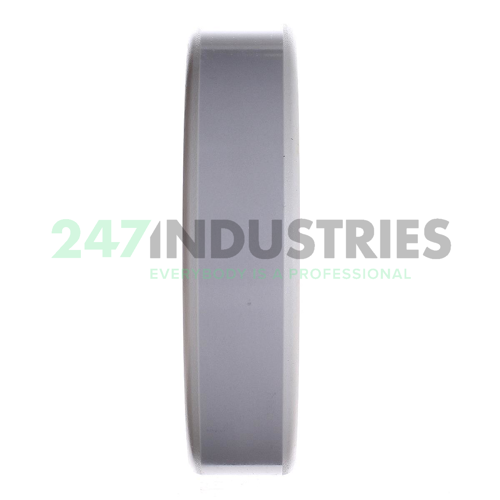

1. J20AB Current Insulation, Outer Ring Ceramic Coated, Breakdown Voltage DC: 1.000 V, Layer Thickness 100 μm, Ohmic Resistance: 50 MΩ. Speciality Humid Environments
2. C3 Internal Clearance Larger Than Normal

Technical details

1. Availability 10 pcs
2. Brand FAG
3. Item number 6316-J20AB-C3 FAG
4. Also known as 0709471390030
   0937511170030

5. EAN 4012802878257
6. Category Deep Groove Ball Bearings Single Row

Product Properties

1. External Modification No External Modification
2. Radial Internal Play C3 Internal Play (Higher than Cn)
3. Precision Standard Precision
4. Lubrication Standard Lubrication
5. Heat Stabilization No Heat Stabilization - Temperatures up to 120 °C
6. Special Treatment J20AB

Data from Schaeffler (medias)

1. Medias description Deep groove ball bearing 63..-J20AB, single row, cf. DIN 625-1
