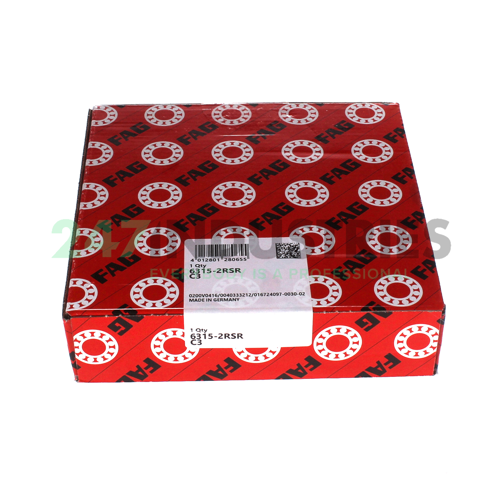

6315-2RSR-C3 FAG

All dimensions

1. Outer (D) MM 160
2. Width (B) MM 37
3. Outer (D) Inch 6.2992
4. Width (B) Inch 1.4567

Suffix description

1. 2RSR Rubber Seals At Each Side Of The Bearing
2. C3 Internal Clearance Larger Than Normal

Technical details

1. Availability 34 pcs
2. Brand FAG
3. Item number 6315-2RSR-C3 FAG
4. Also known as 0167240970030

5. EAN 4012801280655
6. Category Deep Groove Ball Bearings Single Row

Weight and Dimensions

1. Weight (kg) 3.17

Product Properties

1. Bore C - Cylindrical Bore
2. Seal 2RS - Rubber Seal on Two Sides
3. Cage Type S - Steel or Standard Cage
4. External Modification No External Modification
5. Radial Internal Play C3 Internal Play (Higher than Cn)
6. Precision Standard Precision
7. Lubrication Standard Lubrication
8. Heat Stabilization No Heat Stabilization - Temperatures up to 120 °C
9. Special Treatment No Special Treatment

Data from Schaeffler (medias)

1. Medias description Deep groove ball bearing 63..-2RSR, single row, cf. DIN 625-1
