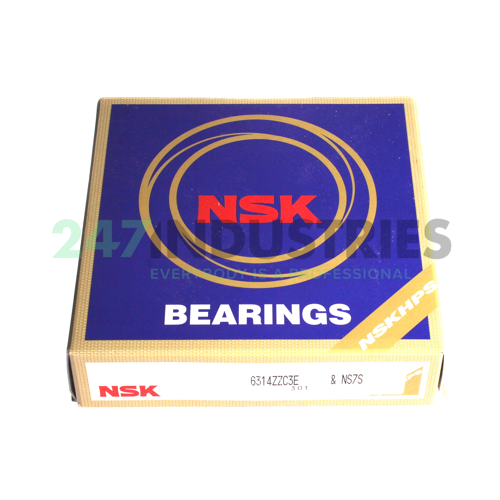

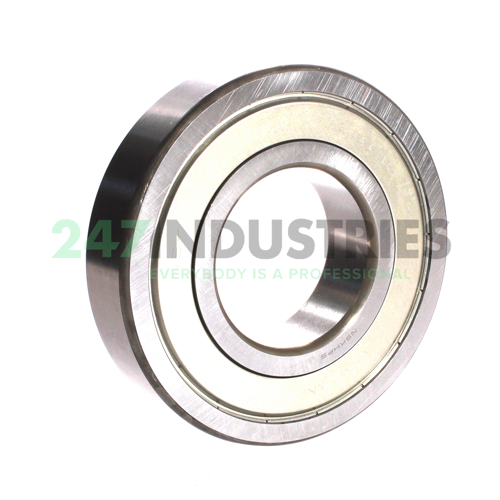

6314ZZC3E NSK

All dimensions

1. Inner (d) MM 70
2. Outer (D) MM 150
3. Width (B) MM 35
4. Inner (d) Inch 2.7559
5. Outer (D) Inch 5.9055
6. Width (B) Inch 1.378

Suffix description

1. ZZ Two Metallic Shields
2. C3 Internal Clearance Larger Than Normal
3. E Ball Bearing, Single Row, Electric Motor Grade, Noise Level

Technical details

1. Availability 0 pcs
2. Brand NSK
3. Item number 6314ZZC3E NSK
4. Also known as 6314-2Z/C3
   6314-2Z/C3QE6
   6314-2Z-C3
   6314ZZ C3

5. EAN 00029176017476
6. Category Deep Groove Ball Bearings Single Row

Weight and Dimensions

1. Weight (kg) 2.615

Product Properties

1. Bore C - Cylindrical Bore
2. Seal ZZ/2Z - Steel Seal on Two Sides
3. Cage Type S - Steel or Standard Cage
4. External Modification No External Modification
5. Radial Internal Play C3 Internal Play (Higher than Cn)
6. Precision Standard Precision
7. Lubrication Standard Lubrication
8. Heat Stabilization No Heat Stabilization - Temperatures up to 120 °C
9. Special Treatment No Special Treatment
