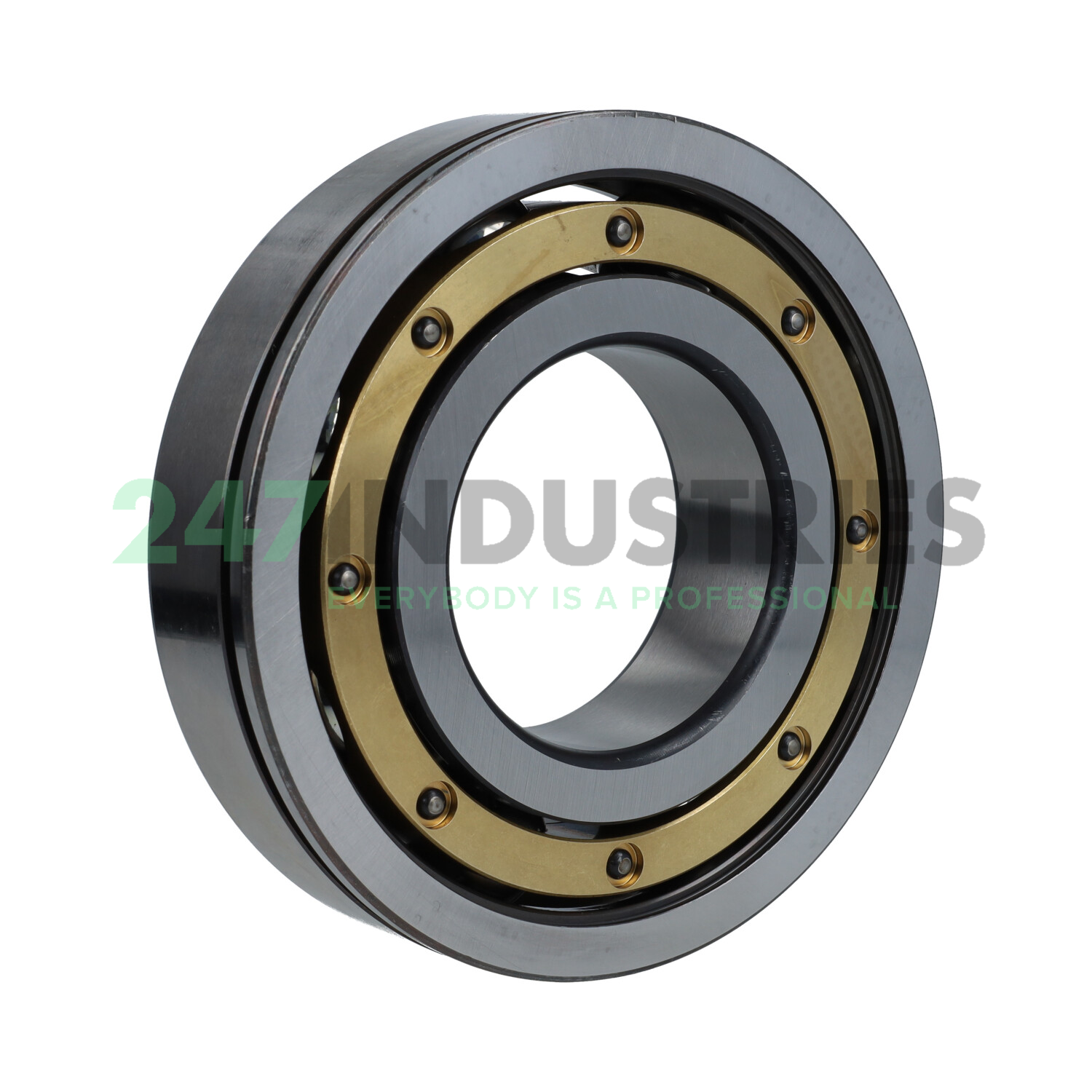

6314N.M.C3 FAG

All dimensions

1. Inner (d) MM 70,00
2. Outer (D) MM 150,00
3. Width (B) MM 35,00
4. Inner (d) Inch 2.7559
5. Outer (D) Inch 5.9055
6. Width (B) Inch 1.3780

Suffix description

1. N Snap Ring Groove In The Outer Ring
2. M Solid Brass Cage, Ball-Guided
3. C3 Internal Clearance Larger Than Normal

Technical details

1. Availability 1 pc
2. Brand FAG
3. Item number 6314N.M.C3 FAG
4. Category Deep Groove Ball Bearings Single Row

Weight and Dimensions

1. Weight (kg) 3.095

Product Properties

1. Bore C - Cylindrical Bore
2. Seal No Seal
3. Cage Type M - Brass Cage
4. External Modification N - Snap Ring Groove in Outer Ring
5. Radial Internal Play C3 Internal Play (Higher than Cn)
6. Precision Standard Precision
7. Lubrication Standard Lubrication
8. Heat Stabilization No Heat Stabilization - Temperatures up to 120 °C
9. Special Treatment No Special Treatment
