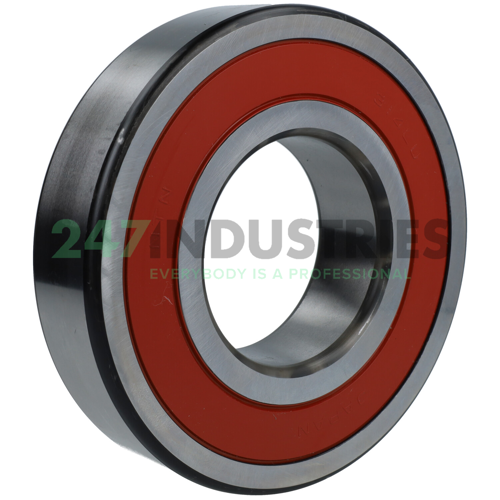

6314LLU/5K NTN

All dimensions

1. Inner (d) MM 70
2. Outer (D) MM 150
3. Width (B) MM 35
4. Inner (d) Inch 2.7559
5. Outer (D) Inch 5.9055
6. Width (B) Inch 1.378

Suffix description

1. LLU Rubber Seals At Each Side Of The Bearing
2. 5K Grease: Kyodo Yushi / Multemp SRL (-40°C to +150°C)

Technical details

1. Availability 2 pcs
2. Brand NTN
3. Item number 6314LLU/5K NTN
4. Also known as 6314LLU

5. EAN 4547359766165
6. Category Deep Groove Ball Bearings Single Row

Weight and Dimensions

1. Weight (kg) 2.82

Product Properties

1. Bore C - Cylindrical Bore
2. Seal 2RS - Rubber Seal on Two Sides
3. Cage Type S - Steel or Standard Cage
4. External Modification No External Modification
5. Radial Internal Play Cn Normal Internal Play
6. Precision Standard Precision
7. Lubrication Higher and Lower Temperature Grease
8. Heat Stabilization No Heat Stabilization - Temperatures up to 120 °C
9. Special Treatment No Special Treatment
