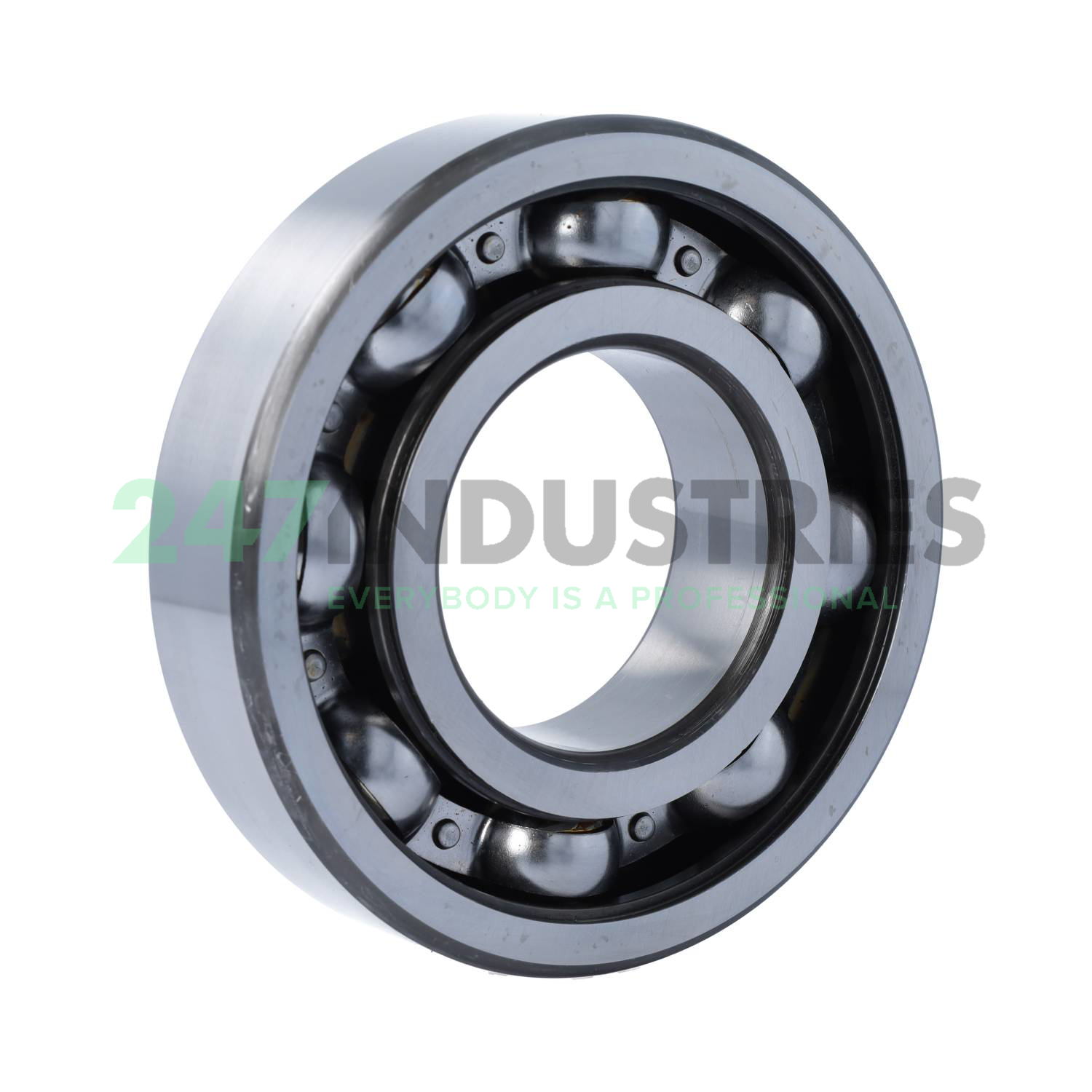

6314DUCM NSK

All dimensions

1. Inner (d) MM 70
2. Outer (D) MM 150
3. Width (B) MM 35
4. Inner (d) Inch 2.7559
5. Outer (D) Inch 5.9055
6. Width (B) Inch 1.378

Suffix description

1. DU Sheet Steel Reinforced Contact Seal Of Acrylonitrile-Butadiene Rubber (NBR) On One Side Of The Bearing
2. CM Ball Bearing, Special Radial Internal Clearance For Electric Motors, Can Be Used As Standard 'CN' Clearance

Technical details

1. Availability 1 pc
2. Brand NSK
3. Item number 6314DUCM NSK
4. Also known as 6314-2RSR
   6314RS
   6314-RS1
   6314-RS1/QE6

5. EAN 00029176521522
6. Category Deep Groove Ball Bearings Single Row

Weight and Dimensions

1. Weight (kg) 2.82

Product Properties

1. Bore C - Cylindrical Bore
2. Seal RS - Rubber Seal on One Side
3. Cage Type S - Steel or Standard Cage
4. External Modification No External Modification
5. Radial Internal Play Cn Normal Internal Play
6. Precision Standard Precision
7. Lubrication Standard Lubrication
8. Heat Stabilization No Heat Stabilization - Temperatures up to 120 °C
9. Special Treatment No Special Treatment
