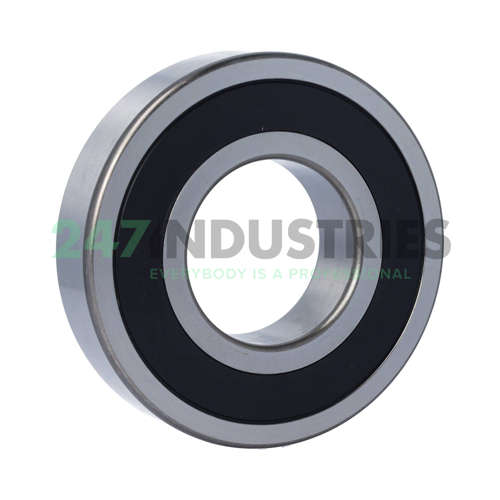

6314DDM KBC

All dimensions

1. Inner (d) MM 70
2. Outer (D) MM 150
3. Width (B) MM 35
4. Inner (d) Inch 2.7559
5. Outer (D) Inch 5.9055
6. Width (B) Inch 1.378

Suffix description

1. DD Contact Seal On Two Sides
2. M Special Grease And Are Noise-Reduced

Technical details

1. Availability 159 pcs
2. Brand KBC
3. Item number 6314DDM KBC
4. Also known as 6314 2RS
   6314-2RS1
   6314-2RSR
   6314DDU
   6314EE
   6314LLU

5. Category Deep Groove Ball Bearings Single Row

Weight and Dimensions

1. Weight (kg) 2.82

Product Properties

1. Bore C - Cylindrical Bore
2. Seal 2RS - Rubber Seal on Two Sides
3. Cage Type S - Steel or Standard Cage
4. External Modification No External Modification
5. Radial Internal Play Cn Normal Internal Play
6. Precision Standard Precision
7. Lubrication Standard Lubrication
8. Heat Stabilization No Heat Stabilization - Temperatures up to 120 °C
9. Special Treatment No Special Treatment
