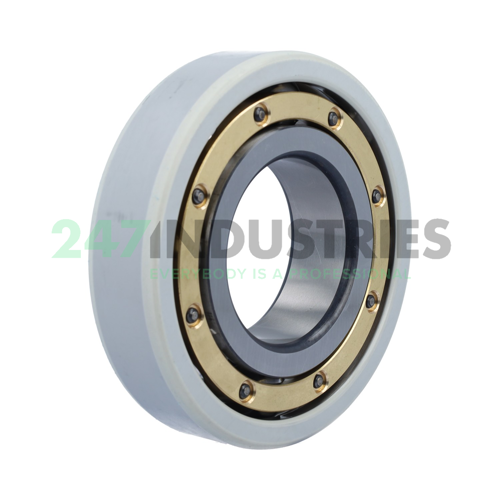

6314-M-J20AB-C4 FAG

All dimensions

1. Inner (d) MM 70
2. Outer (D) MM 150
3. Width (B) MM 35
4. Width (b) mm 35

Suffix description

1. M Solid Brass Cage, Ball-Guided
2. J20AB Current Insulation, Outer Ring Ceramic Coated, Breakdown Voltage DC: 1.000 V, Layer Thickness 100 μm, Ohmic Resistance: 50 MΩ. Speciality Humid Environments
3. C4 Bearing Internal Clearance Greater Than C3

Technical details

1. Availability 1 pc on Wed 11 Feb
2. Brand FAG
3. Item number 6314-M-J20AB-C4 FAG
4. Also known as 0742030020040

5. EAN 4047643067676
6. Category Deep Groove Ball Bearings Single Row

Weight and Dimensions

1. Weight (kg) 3.125

Product Properties

1. Bore C - Cylindrical Bore
2. Seal No Seal
3. Cage Type M - Brass Cage
4. External Modification No External Modification
5. Radial Internal Play C4 Internal Play (Higher than C3)
6. Precision Standard Precision
7. Lubrication Standard Lubrication
8. Heat Stabilization No Heat Stabilization - Temperatures up to 120 °C
9. Special Treatment J20AB

Data from Schaeffler (medias)

1. Basic static load rating, radial (C 0r) 69000
2. Limiting speed (n G) 8800
3. Reference speed (n ϑr) 6100
