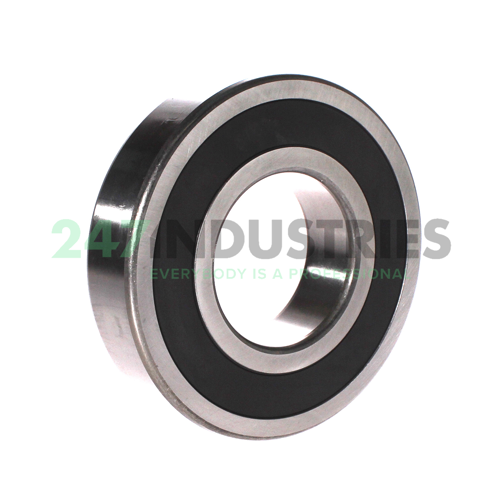

6314-H-2RSR-SN-C3 FAG

All dimensions

1. Outer (D) MM 150
2. Width (B) MM 35
3. Outer (D) Inch 5.9055
4. Width (B) Inch 1.378
5. Width (b) mm 35

Suffix description

1. H Basic Quality
2. 2RSR Rubber Seals At Each Side Of The Bearing
3. SN The Rings Of The Bearing Are Dimensional Stabilised To 120°C
4. C3 Internal Clearance Larger Than Normal

Technical details

1. Availability 19 pcs
2. Brand FAG
3. Item number 6314-H-2RSR-SN-C3 FAG
4. Category Deep Groove Ball Bearings Single Row

Weight and Dimensions

1. Weight (kg) 2.82

Product Properties

1. Bore C - Cylindrical Bore
2. Seal 2RS - Rubber Seal on Two Sides
3. Cage Type S - Steel or Standard Cage
4. External Modification No External Modification
5. Radial Internal Play C3 Internal Play (Higher than Cn)
6. Precision Standard Precision
7. Lubrication Standard Lubrication
8. Heat Stabilization No Heat Stabilization - Temperatures up to 120 °C
9. Special Treatment No Special Treatment

Data from Schaeffler (medias)

1. Radial Static Load Rating C0r (N) 68040
2. ECLASS number 23-05-08-01
3. ECLASS2 number 23-05-08-01
4. Medias description Deep groove ball bearings 63..-H-2RSR, main dimensions to DIN 625-1, lip seals on both sides
