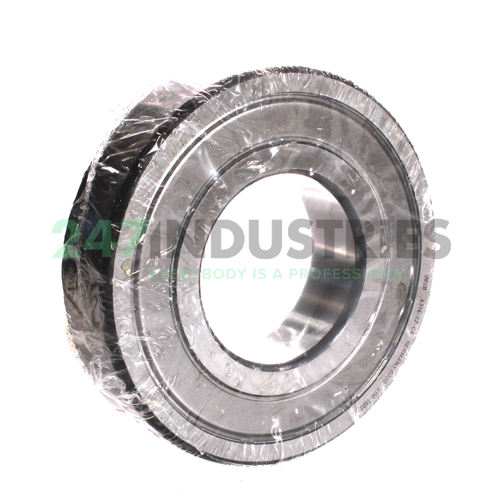

6314-2Z-C4 FAG

All dimensions

1. Inner (d) MM 70
2. Outer (D) MM 150
3. Width (B) MM 35
4. Inner (d) Inch 2.7559
5. Outer (D) Inch 5.9055
6. Width (B) Inch 1.378
7. Width (b) mm 35

Suffix description

1. 2Z Non-Contact Sealing Shield On Both Sides (Sheet Metal Gap Seal)
2. C4 Bearing Internal Clearance Greater Than C3

Technical details

1. Availability 24 pcs
2. Brand FAG
3. Item number 6314-2Z-C4 FAG
4. Also known as 0167240380040

5. EAN 4026677050021
6. Category Deep Groove Ball Bearings Single Row

Weight and Dimensions

1. Weight (kg) 2.615

Product Properties

1. Bore C - Cylindrical Bore
2. Seal ZZ/2Z - Steel Seal on Two Sides
3. Cage Type S - Steel or Standard Cage
4. External Modification No External Modification
5. Radial Internal Play C4 Internal Play (Higher than C3)
6. Precision Standard Precision
7. Lubrication Standard Lubrication
8. Heat Stabilization No Heat Stabilization - Temperatures up to 120 °C
9. Special Treatment No Special Treatment

Data from Schaeffler (medias)

1. Radial Static Load Rating C0r (N) 69000
2. Radial Dynamic Load Rating Cr (N) 115000
3. Limiting speed (n G) 5700
4. Reference speed (n ϑr) 6100
5. ECLASS number 23-05-08-01
6. ECLASS2 number 23-05-08-01
7. Medias description Deep groove ball bearing 63..-2Z, single row, cf. DIN 625-1
