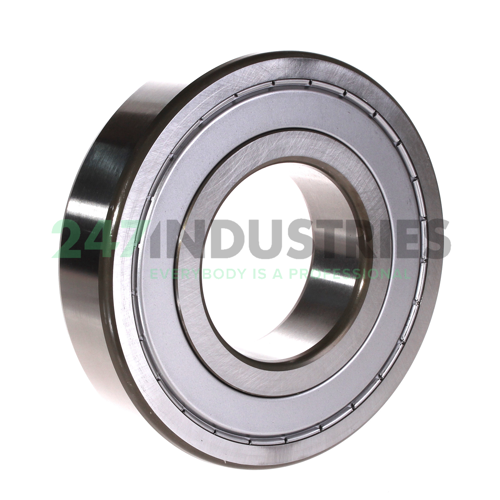

6314-2Z/C3GJN SKF

All dimensions

1. Inner (d) MM 70
2. Outer (D) MM 150
3. Width (B) MM 35
4. Inner (d) Inch 2.7559
5. Outer (D) Inch 5.9055
6. Width (B) Inch 1.378

Suffix description

1. 2Z Shield Of Pressed Sheet Steel On Both Sides Of The Bearing
2. C3 Internal Clearance Larger Than Normal
3. GJN Grease With Polyurea Thickener Of Consistency 2 To The NLGI Scale For High Temperature, Range -30 ~ 150°C (Normal Filling Grade)

Technical details

1. Availability 4 pcs
2. Brand SKF
3. Item number 6314-2Z/C3GJN SKF
4. Also known as 6314-2Z/C3
   6314-2Z-C3

5. EAN 7316571555737
6. Category Deep Groove Ball Bearings Single Row

Weight and Dimensions

1. Weight (kg) 2.62

Product Properties

1. Bore C - Cylindrical Bore
2. Seal ZZ/2Z - Steel Seal on Two Sides
3. Cage Type S - Steel or Standard Cage
4. External Modification No External Modification
5. Radial Internal Play C3 Internal Play (Higher than Cn)
6. Precision Standard Precision
7. Lubrication Standard Lubrication
8. Heat Stabilization S2 - Temperatures up to 250 °C
9. Special Treatment No Special Treatment
