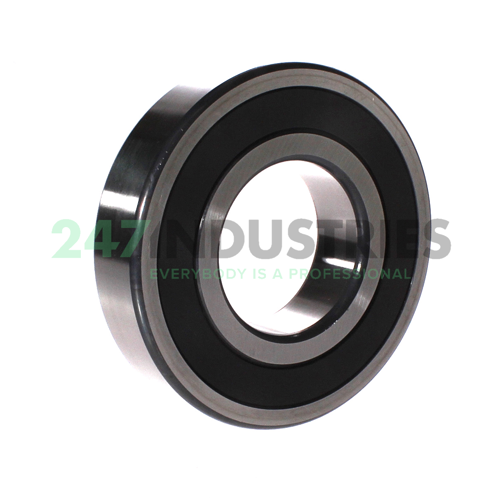

6314-2RSR-C3 FAG

All dimensions

1. Inner (d) MM 70
2. Outer (D) MM 150
3. Width (B) MM 35
4. Inner (d) Inch 2.7559
5. Outer (D) Inch 5.9055
6. Width (B) Inch 1.378
7. Width (b) mm 35

Suffix description

1. 2RSR Rubber Seals At Each Side Of The Bearing
2. C3 Internal Clearance Larger Than Normal

Technical details

1. Availability 35 pcs
2. Brand FAG
3. Item number 6314-2RSR-C3 FAG
4. Also known as 0167240200030
   6314 2RS C3
   6314-2RS1/C3
   6314DDUC3
   6314EEC3
   6314LLUC3

5. EAN 4012801205597
6. Category Deep Groove Ball Bearings Single Row

Weight and Dimensions

1. Weight (kg) 2.82

Product Properties

1. Bore C - Cylindrical Bore
2. Seal 2RS - Rubber Seal on Two Sides
3. Cage Type S - Steel or Standard Cage
4. External Modification No External Modification
5. Radial Internal Play C3 Internal Play (Higher than Cn)
6. Precision Standard Precision
7. Lubrication Standard Lubrication
8. Heat Stabilization No Heat Stabilization - Temperatures up to 120 °C
9. Special Treatment No Special Treatment

Data from Schaeffler (medias)

1. Radial Static Load Rating C0r (N) 69000
2. Radial Dynamic Load Rating Cr (N) 115000
3. Limiting speed (n G) 2800
4. ECLASS number 23-05-08-01
5. ECLASS2 number 23-05-08-01
6. Medias description Deep groove ball bearing 63..-2RSR, single row, cf. DIN 625-1
