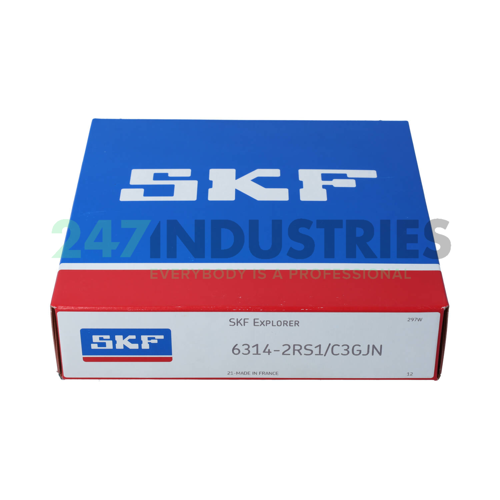

6314-2RS1/C3GJN SKF

All dimensions

1. Inner (d) MM 70
2. Outer (D) MM 150
3. Width (B) MM 35
4. Inner (d) Inch 2.7559
5. Outer (D) Inch 5.9055
6. Width (B) Inch 1.378

Suffix description

1. 2RS1 Sheet Steel Reinforced Contact Seal Of Acrylonitrile-Butadiene Rubber (NBR) On Both Sides Of The Bearing
2. C3 Internal Clearance Larger Than Normal
3. GJN Di-urea, Hi-temp. Grease 115 cSt @ 40°C, Range -40 ~ 150°C

Technical details

1. Availability 3 pcs
2. Brand SKF
3. Item number 6314-2RS1/C3GJN SKF
4. Also known as 6314 2RS C3
   6314-2RS1/C3
   6314-2RSR-C3
   6314DDUC3
   6314EE J30
   6314EEC3
   6314LLUC3

5. EAN 7316571577036
6. Category Deep Groove Ball Bearings Single Row

Weight and Dimensions

1. Weight (kg) 2.82

Product Properties

1. Bore C - Cylindrical Bore
2. Seal 2RS - Rubber Seal on Two Sides
3. Cage Type S - Steel or Standard Cage
4. External Modification No External Modification
5. Radial Internal Play C3 Internal Play (Higher than Cn)
6. Precision Standard Precision
7. Lubrication 2 - High Temperature Grease
8. Heat Stabilization No Heat Stabilization - Temperatures up to 120 °C
9. Special Treatment No Special Treatment
