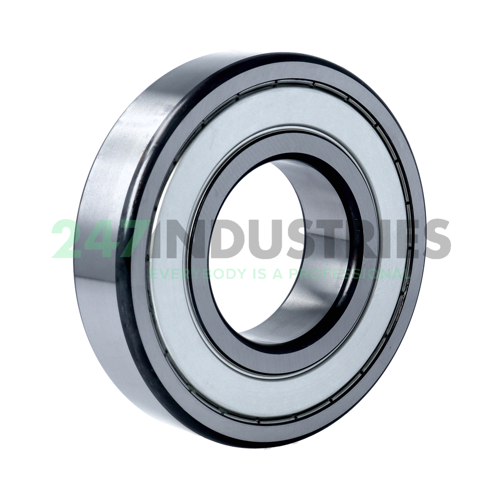

6313-C-2Z-L207-C4 FAG

All dimensions

1. Inner (d) MM 65
2. Outer (D) MM 140
3. Width (B) MM 33
4. Inner (d) Inch 2.5591
5. Outer (D) Inch 5.5118
6. Width (B) Inch 1.2992
7. Width (b) mm 33

Suffix description

1. C Deep Groove Ball Bearings Of Generation C, Modified Internal Construction
2. 2Z Two Metallic Shields
3. L207 Grease Filling With Arcanol L207 (High Temperature Grease)
4. C4 Bearing Internal Clearance Greater Than C3

Technical details

1. Availability 4 pcs
2. Brand FAG
3. Item number 6313-C-2Z-L207-C4 FAG
4. Also known as 0933456740040
   6313-2Z-L207-C4

5. EAN 4054371169268
6. Category Deep Groove Ball Bearings Single Row

Weight and Dimensions

1. Weight (kg) 2.1

Product Properties

1. Bore C - Cylindrical Bore
2. Seal ZZ/2Z - Steel Seal on Two Sides
3. Cage Type S - Steel or Standard Cage
4. External Modification No External Modification
5. Radial Internal Play C4 Internal Play (Higher than C3)
6. Precision Standard Precision
7. Lubrication 2 - High Temperature Grease
8. Heat Stabilization No Heat Stabilization - Temperatures up to 120 °C
9. Special Treatment No Special Treatment

Data from Schaeffler (medias)

1. Radial Static Load Rating C0r (N) 60000
2. Radial Dynamic Load Rating Cr (N) 101000
3. Limiting speed (n G) 6200
4. Reference speed (n ϑr) 7000
5. ECLASS number 23-05-08-01
6. ECLASS2 number 23-05-08-01
7. Medias description Deep groove ball bearing 63..-C-2Z, single row, cf. DIN 625-1
