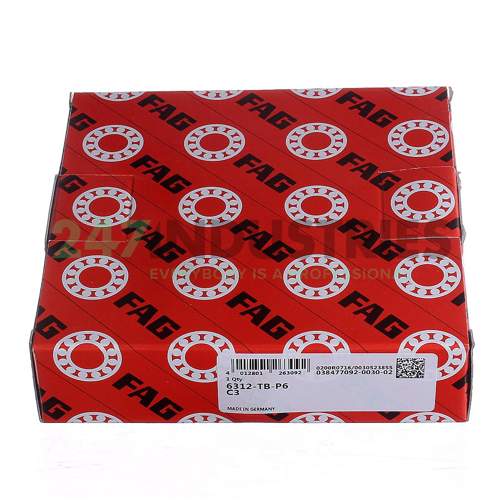

6312-TB-P6-C3 FAG

All dimensions

1. Inner (d) MM 60
2. Outer (D) MM 130
3. Width (B) MM 31
4. Inner (d) Inch 2.3622
5. Outer (D) Inch 5.1181
6. Width (B) Inch 1.2205

Suffix description

1. TB Window-Type Cage Of Fabric Reinforced Phenolic Resin, Inner Ring Centered
2. P6 Dimensional And Running Accuracy To ISO Tolerance Class 6 (Better Than Normal)
3. C3 Internal Clearance Larger Than Normal

Technical details

1. Availability 19 pcs
2. Brand FAG
3. Item number 6312-TB-P6-C3 FAG
4. Also known as 0384770920030

5. EAN 4012801263092
6. Category Deep Groove Ball Bearings Single Row

Weight and Dimensions

1. Weight (kg) 1.72

Product Properties

1. Bore C - Cylindrical Bore
2. Seal No Seal
3. Cage Type TB - Hard Fiber Cage
4. External Modification No External Modification
5. Radial Internal Play C3 Internal Play (Higher than Cn)
6. Precision P6 Precision (Higher than Standard)
7. Lubrication Standard Lubrication
8. Heat Stabilization No Heat Stabilization - Temperatures up to 120 °C
9. Special Treatment No Special Treatment

Data from Schaeffler (medias)

1. ECLASS number 23-05-08-01
2. ECLASS2 number 23-05-08-01
