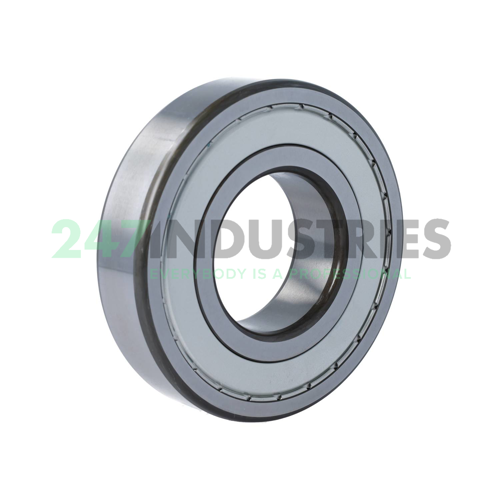

6312-RS1Z/C4GJN4 SKF

All dimensions

1. Inner (d) MM 60
2. Outer (D) MM 130
3. Width (B) MM 31
4. Inner (d) Inch 2.3622
5. Outer (D) Inch 5.1181
6. Width (B) Inch 1.2205

Suffix description

1. RS1 Sheet Steel Reinforced Contact Seal Of Acrylonitrile-Butadiene Rubber (NBR) On One Side Of The Bearing
2. Z Shield Of Pressed Sheet Steel On One Side Of The Bearing
3. C4 Bearing Internal Clearance Greater Than C3
4. GJN Grease With Polyurea Thickener Of Consistency 2 To The NLGI Scale For Temperature Range -30°C/+150°C (Normal Filling Grade)
5. 4 Grease Fill Larger Than Standard

Technical details

1. Availability 3 pcs
2. Brand SKF
3. Item number 6312-RS1Z/C4GJN4 SKF
4. Also known as 6312-RS1Z/C4

5. EAN 7316571570341
6. Category Deep Groove Ball Bearings Single Row

Weight and Dimensions

1. Weight (kg) 1.72

Product Properties

1. Bore C - Cylindrical Bore
2. Seal 2RZ - Rubber and Steel Seal
3. Cage Type S - Steel or Standard Cage
4. External Modification No External Modification
5. Radial Internal Play C4 Internal Play (Higher than C3)
6. Precision Standard Precision
7. Lubrication 2 - High Temperature Grease
8. Heat Stabilization No Heat Stabilization - Temperatures up to 120 °C
9. Special Treatment No Special Treatment
