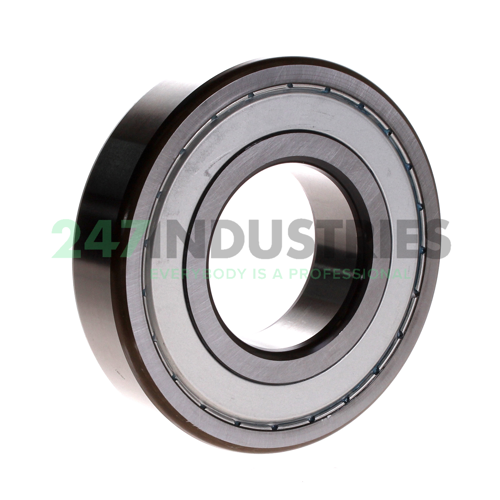

6312-2Z/C3S0GJN SKF

All dimensions

1. Inner (d) MM 60
2. Outer (D) MM 130
3. Width (B) MM 31
4. Inner (d) Inch 2.3622
5. Outer (D) Inch 5.1181
6. Width (B) Inch 1.2205

Suffix description

1. 2Z Shield Of Pressed Sheet Steel On Both Sides Of The Bearing
2. C3 Internal Clearance Larger Than Normal
3. S0 Bearing Rings Or Washers Dimensionally Stabilized For Use At Operating Temperatures Up To +150°C (302°F)
4. GJN Grease With Polyurea Thickener Of Consistency 2 To The NLGI Scale For Temperature Range -30 ~ 150°C (Normal Filling Grade)

Technical details

1. Availability 0 pcs
2. Brand SKF
3. Item number 6312-2Z/C3S0GJN SKF
4. Also known as 6312-2Z/C3S0

5. Category Deep Groove Ball Bearings Single Row

Weight and Dimensions

1. Weight (kg) 1.73

Product Properties

1. Bore C - Cylindrical Bore
2. Seal ZZ/2Z - Steel Seal on Two Sides
3. Cage Type S - Steel or Standard Cage
4. External Modification No External Modification
5. Radial Internal Play C3 Internal Play (Higher than Cn)
6. Precision Standard Precision
7. Lubrication 2 - High Temperature Grease
8. Heat Stabilization S0 - Temperatures up to 150 °C
9. Special Treatment No Special Treatment
