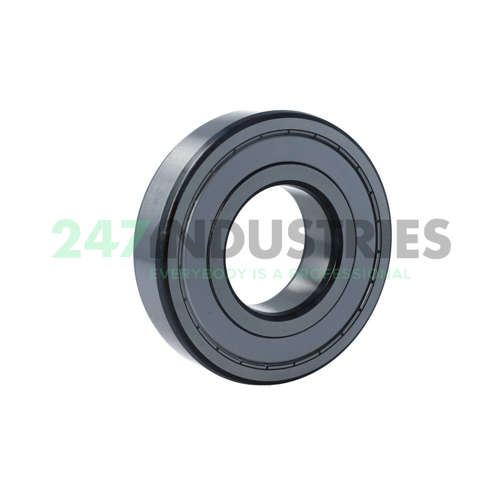

6312-2Z/C3LHT23 SKF

All dimensions

1. Inner (d) MM 60
2. Outer (D) MM 130
3. Width (B) MM 31
4. Inner (d) Inch 2.3622
5. Outer (D) Inch 5.1181
6. Width (B) Inch 1.2205

Suffix description

1. 2Z Shield Of Pressed Sheet Steel On Both Sides Of The Bearing
2. C3 Internal Clearance Larger Than Normal
3. LHT23 Lithium Grease, Wide Range, 26 cSt @ 40°C, Range -50 ~ 140°C. A Two-Figure Number Following LHT Identifies The Actual Grease

Technical details

1. Availability 6 pcs
2. Brand SKF
3. Item number 6312-2Z/C3LHT23 SKF
4. Also known as 6312-2Z/C3
   6312-2Z-C3
   6312ZZ C3

5. EAN 7316570738889
6. Category Deep Groove Ball Bearings Single Row

Weight and Dimensions

1. Weight (kg) 1.73

Product Properties

1. Bore C - Cylindrical Bore
2. Seal ZZ/2Z - Steel Seal on Two Sides
3. Cage Type S - Steel or Standard Cage
4. External Modification No External Modification
5. Radial Internal Play C3 Internal Play (Higher than Cn)
6. Precision Standard Precision
7. Lubrication L - -50°C/+140°C
8. Heat Stabilization No Heat Stabilization - Temperatures up to 120 °C
9. Special Treatment No Special Treatment
