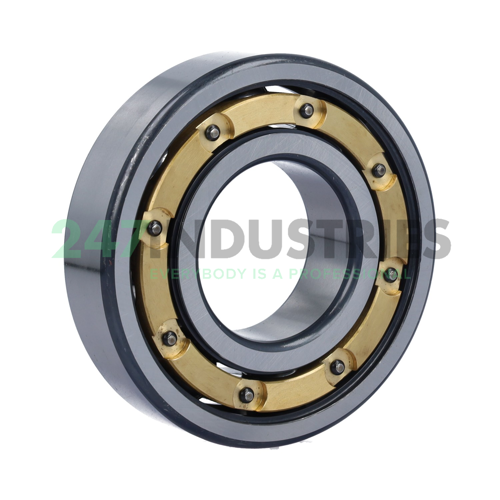

6310-C-M FAG

All dimensions

1. Inner (d) MM 50
2. Outer (D) MM 110
3. Width (B) MM 27
4. Inner (d) Inch 1.9685
5. Outer (D) Inch 4.3307
6. Width (B) Inch 1.063
7. Width (b) mm 27

Suffix description

1. C Deep Groove Ball Bearings Of Generation C, Modified Internal Construction
2. M Solid Brass Cage, Ball-Guided

Technical details

1. Availability 5 pcs
2. Brand FAG
3. Item number 6310-C-M FAG
4. Also known as 0890134250000
   6310-M

5. EAN 4064327719454
6. Category Deep Groove Ball Bearings Single Row

Weight and Dimensions

1. Weight (kg) 1.31

Product Properties

1. Bore C - Cylindrical Bore
2. Seal No Seal
3. Cage Type M - Brass Cage
4. External Modification No External Modification
5. Radial Internal Play Cn Normal Internal Play
6. Precision Standard Precision
7. Lubrication Standard Lubrication
8. Heat Stabilization No Heat Stabilization - Temperatures up to 120 °C
9. Special Treatment No Special Treatment

Data from Schaeffler (medias)

1. Radial Static Load Rating C0r (N) 38000
2. Radial Dynamic Load Rating Cr (N) 68000
3. Limiting speed (n G) 12300
4. Reference speed (n ϑr) 8400
5. ECLASS number 23-05-08-01
6. ECLASS2 number 23-05-08-01
7. Medias description Deep groove ball bearing 63..-C-M, single row, cf. DIN 625-1

Downloads and links

1. Link to manufacturer Link to manufacturer
