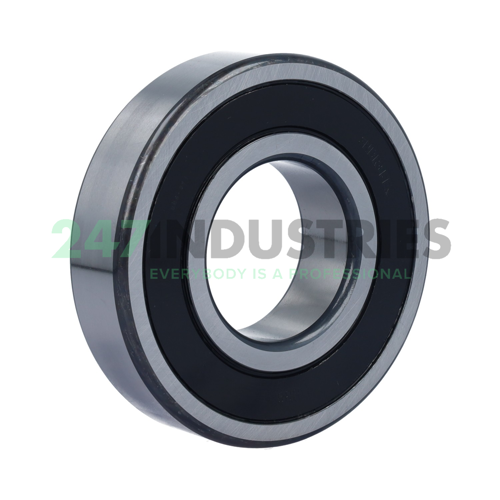

6310-C-2HRS-L138-C3 FAG

All dimensions

1. Inner (d) MM 50
2. Outer (D) MM 110
3. Width (B) MM 27
4. Inner (d) Inch 1.9685
5. Outer (D) Inch 4.3307
6. Width (B) Inch 1.063
7. Width (b) mm 27

Suffix description

1. C Deep Groove Ball Bearings Of Generation C, Modified Internal Construction
2. 2HRS Lip Seals On Both Sides Made From Nitrile Butadiene Rubber, These Designs Are Lubricated For Life Using A High Quality Grease And Are Suitable For Moderate Speeds. The Frictional Torque And Heat Generation Are Lower Than With The Previous RSR Seal
3. L138 Lubricant (Customer Specific)
4. C3 Internal Clearance Larger Than Normal

Technical details

1. Availability 2 pcs
2. Brand FAG
3. Item number 6310-C-2HRS-L138-C3 FAG
4. Also known as 0890264200030
   6310-2HRS-L138-C3
   6310-C-2HRS-C3

5. EAN 4054369499001
6. Category Deep Groove Ball Bearings Single Row

Weight and Dimensions

1. Weight (kg) 1.103

Product Properties

1. Bore C - Cylindrical Bore
2. Seal 2RH - High Speed Low Friction Seal on Two Sides
3. Cage Type S - Steel or Standard Cage
4. External Modification No External Modification
5. Radial Internal Play C3 Internal Play (Higher than Cn)
6. Precision Standard Precision
7. Lubrication Low Temperature Grease
8. Heat Stabilization No Heat Stabilization - Temperatures up to 120 °C
9. Special Treatment No Special Treatment

Data from Schaeffler (medias)

1. Radial Static Load Rating C0r (N) 38000
2. Radial Dynamic Load Rating Cr (N) 68000
3. Limiting speed (n G) 5800
4. ECLASS number 23-05-08-01
5. ECLASS2 number 23-05-08-01
6. Medias description Deep groove ball bearing 63..-C-2HRS, single row, cf. DIN 625-1
