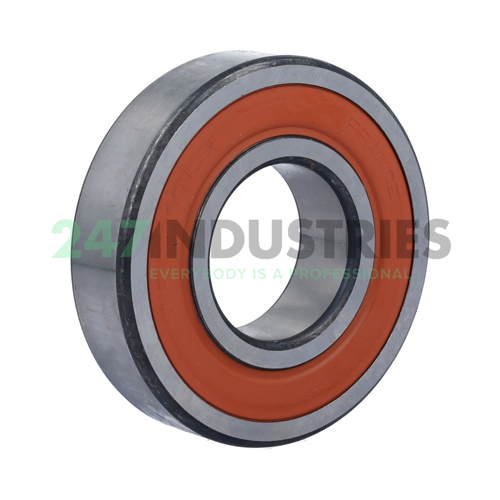

6309.HT200 SNR

All dimensions

1. Inner (d) MM 45
2. Outer (D) MM 100
3. Width (B) MM 25
4. Inner (d) Inch 1.7717
5. Outer (D) Inch 3.937
6. Width (B) Inch 0.9843

Suffix description

1. HT200 High Temperature 200°C (400°F) Peak, Medium Speed: Up To 150 000 N.Dm -> Lip-closure!!

Technical details

1. Availability 0 pcs
2. Brand SNR
3. Item number 6309.HT200 SNR
4. Category Deep Groove Ball Bearings Single Row

Weight and Dimensions

1. Weight (kg) 0.851

Product Properties

1. Bore C - Cylindrical Bore
2. Seal R2 - Viton Rubber Seal / High Temp
3. Cage Type S - Steel or Standard Cage
4. External Modification No External Modification
5. Radial Internal Play C4 Internal Play (Higher than C3)
6. Precision Standard Precision
7. Lubrication Standard Lubrication
8. Heat Stabilization S1 - Temperatures up to 200 °C
9. Special Treatment No Special Treatment
