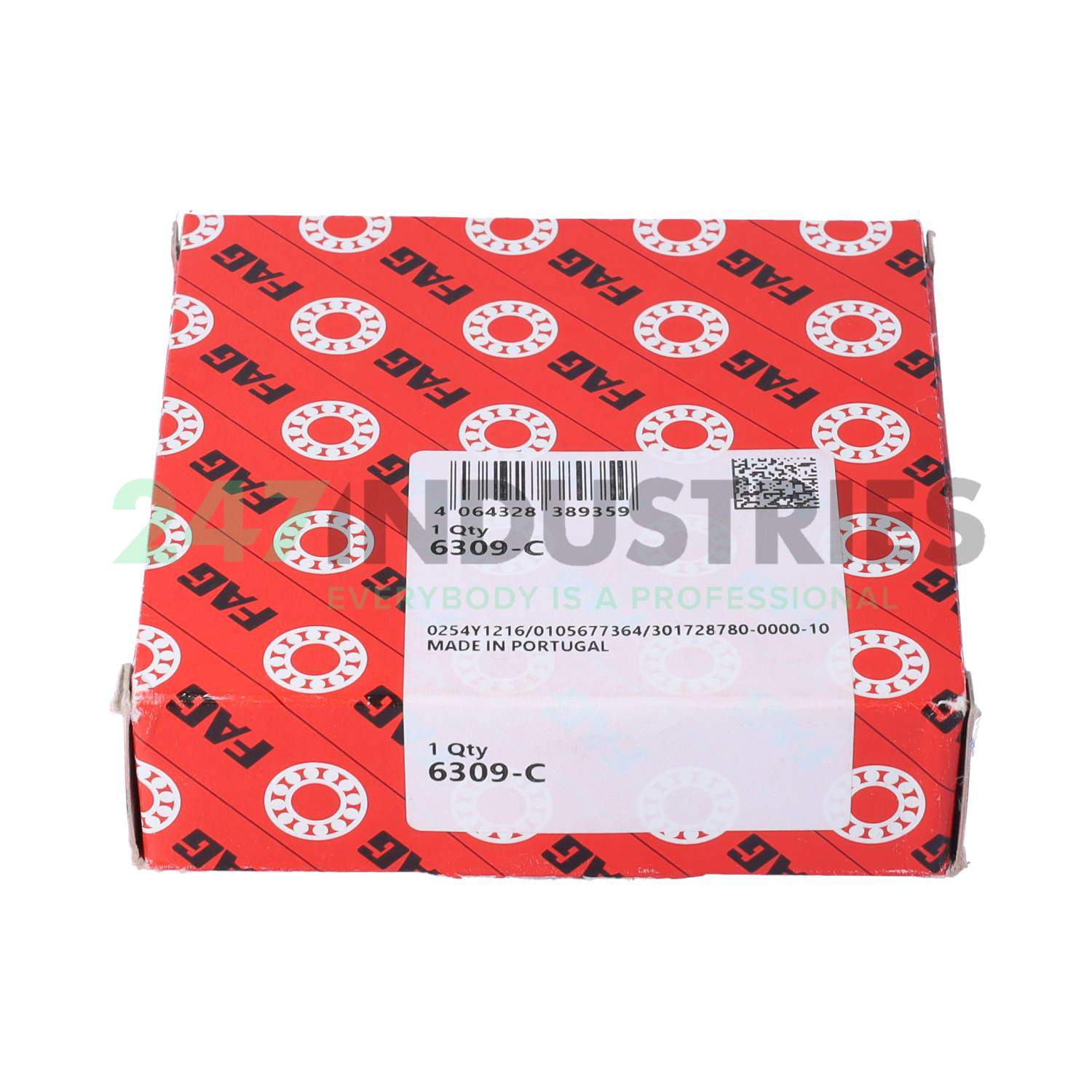

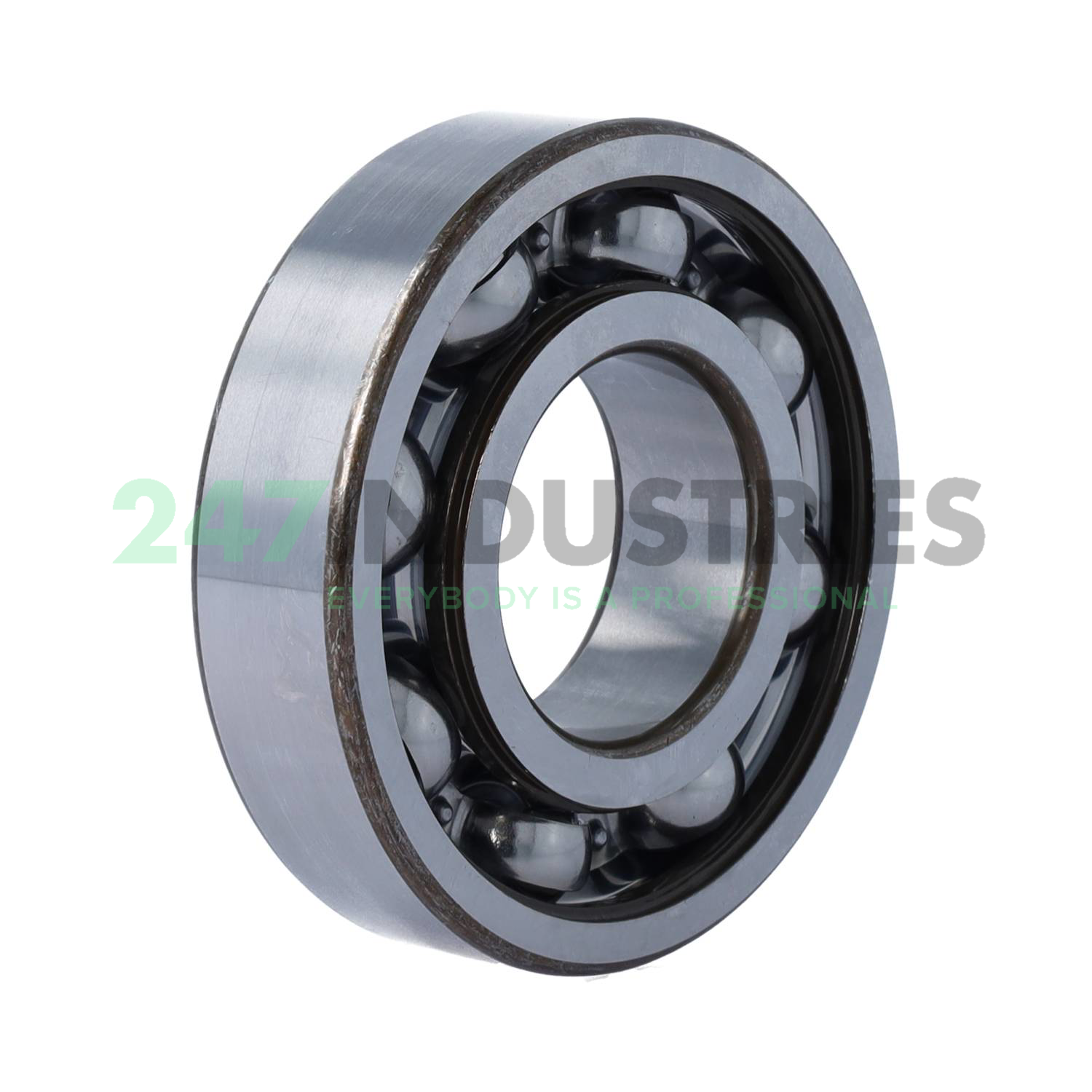

6309-C FAG

All dimensions

1. Inner (d) MM 45,00
2. Outer (D) MM 100,00
3. Width (B) MM 25,00
4. Inner (d) Inch 1.7717
5. Outer (D) Inch 3.9370
6. Width (B) Inch 0.9843
7. Width (b) mm 25,00

Suffix description

1. C Deep Groove Ball Bearings Of Generation C, Modified Internal Construction

Technical details

1. Availability 221 pcs
2. Brand FAG
3. Item number 6309-C FAG
4. Also known as 0850058860000
   6309

5. EAN 4054369705645
6. Category Deep Groove Ball Bearings Single Row

Weight and Dimensions

1. Weight (kg) 0.839

Product Properties

1. Bore C - Cylindrical Bore
2. Seal No Seal
3. Cage Type S - Steel or Standard Cage
4. External Modification No External Modification
5. Radial Internal Play Cn Normal Internal Play
6. Precision Standard Precision
7. Lubrication Standard Lubrication
8. Heat Stabilization No Heat Stabilization - Temperatures up to 120 °C
9. Special Treatment No Special Treatment

Data from Schaeffler (medias)

1. Radial Static Load Rating C0r (N) 31500
2. Radial Dynamic Load Rating Cr (N) 58000
3. Basic static load rating, radial (C 0r) "31500.0000"
4. Limiting speed (n G) "10500.0000"
5. Reference speed (n ϑr) "9100.0000"
6. ECLASS number 23-05-08-01
7. ECLASS2 number 23-05-08-01
8. Medias description Deep groove ball bearings 63..-C, modified internal construction (Generation C), main dimensions to DIN 625-1
