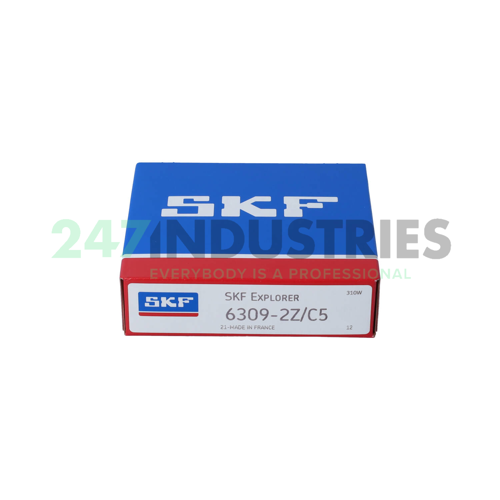

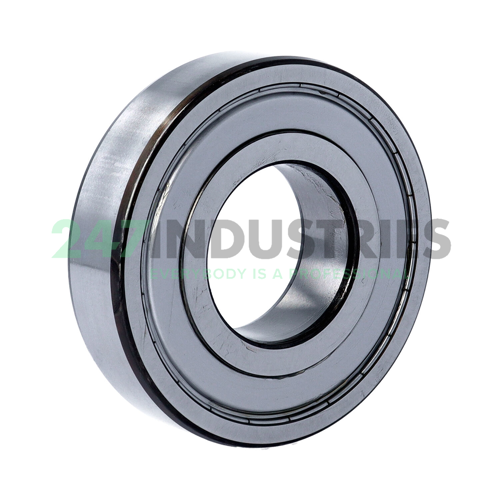

6309-2Z/C5 SKF

All dimensions

1. Inner (d) MM 45
2. Outer (D) MM 100
3. Width (B) MM 25
4. Inner (d) Inch 1.7717
5. Outer (D) Inch 3.937
6. Width (B) Inch 0.9843

Suffix description

1. 2Z Shield Of Pressed Sheet Steel On Both Sides Of The Bearing
2. C5 Bearing Internal Clearance Greater Than C4

Technical details

1. Availability 22 pcs
2. Brand SKF
3. Item number 6309-2Z/C5 SKF
4. Also known as 6309-2Z-C5
   6309ZZ C5

5. EAN 7316571451312
6. Category Deep Groove Ball Bearings Single Row

Weight and Dimensions

1. Weight (kg) 0.848

Product Properties

1. Bore C - Cylindrical Bore
2. Seal ZZ/2Z - Steel Seal on Two Sides
3. Cage Type S - Steel or Standard Cage
4. External Modification No External Modification
5. Radial Internal Play C5 Internal Play (Higher than C4)
6. Precision Standard Precision
7. Lubrication Standard Lubrication
8. Heat Stabilization No Heat Stabilization - Temperatures up to 120 °C
9. Special Treatment No Special Treatment
