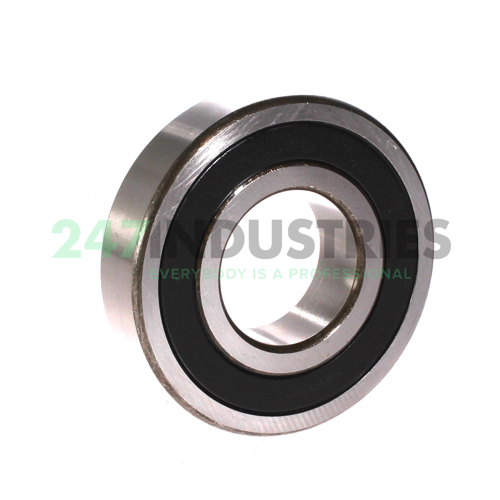

6309.2RSR.J22C FAG

All dimensions

1. Inner (d) MM 45
2. Outer (D) MM 100
3. Width (B) MM 25
4. Inner (d) Inch 1.7717
5. Outer (D) Inch 3.937
6. Width (B) Inch 0.9843

Suffix description

1. 2RSR Rubber Seals At Each Side Of The Bearing
2. J22C Products Without Or With Limited Marking; Packaging Specifications; J22C Replaces Z67

Technical details

1. Availability 0 pcs
2. Brand FAG
3. Item number 6309.2RSR.J22C FAG
4. Category Deep Groove Ball Bearings Single Row

Weight and Dimensions

1. Weight (kg) 0.86

Product Properties

1. Bore C - Cylindrical Bore
2. Seal 2RS - Rubber Seal on Two Sides
3. Cage Type S - Steel or Standard Cage
4. External Modification No External Modification
5. Radial Internal Play Cn Normal Internal Play
6. Precision Standard Precision
7. Lubrication Standard Lubrication
8. Heat Stabilization No Heat Stabilization - Temperatures up to 120 °C
9. Special Treatment No Special Treatment
