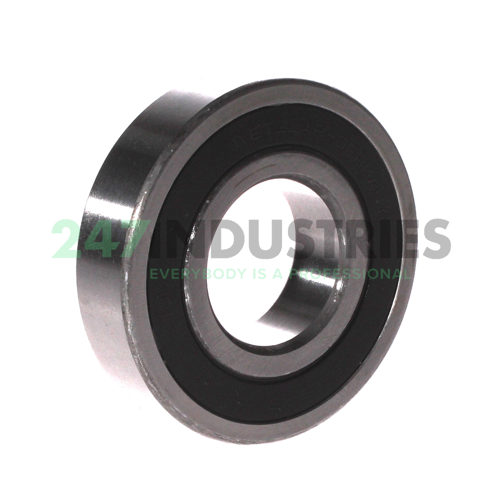

6309.2RS.C3M IBC Bearings

All dimensions

1. Inner (d) MM 45
2. Outer (D) MM 100
3. Width (B) MM 25
4. Inner (d) Inch 1.7717
5. Outer (D) Inch 3.937
6. Width (B) Inch 0.9843

Suffix description

1. 2RS Rubber Seals At Each Side Of The Bearing
2. C3M Two Middle Quarters Of Normal C3 Clearance Range

Technical details

1. Availability 8 pcs
2. Brand IBC Bearings
3. Item number 6309.2RS.C3M IBC Bearings
4. Category Deep Groove Ball Bearings Single Row

Weight and Dimensions

1. Weight (kg) 0.86

Product Properties

1. Bore C - Cylindrical Bore
2. Seal 2RS - Rubber Seal on Two Sides
3. Cage Type S - Steel or Standard Cage
4. External Modification No External Modification
5. Radial Internal Play C3M - Middle Quarters Of Normal C3
6. Precision Standard Precision
7. Lubrication Standard Lubrication
8. Heat Stabilization No Heat Stabilization - Temperatures up to 120 °C
9. Special Treatment No Special Treatment
