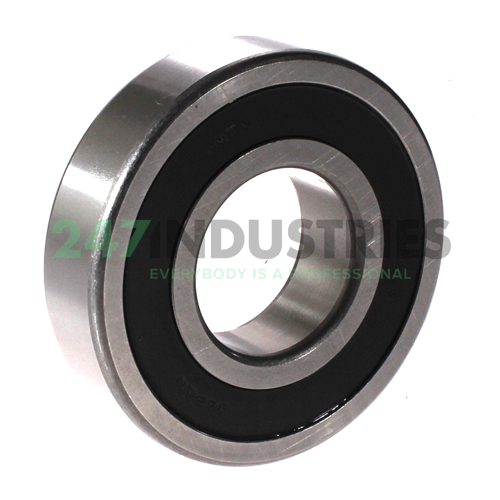

6308T2XLLBC3P5/5KQ20 NTN

All dimensions

1. Inner (d) MM 40
2. Outer (D) MM 90
3. Width (B) MM 23
4. Inner (d) Inch 1.5748
5. Outer (D) Inch 3.5433
6. Width (B) Inch 0.9055

Suffix description

1. T2X Special Polyamide Cage For Sealed Ball Bearings
2. LLB Synthetic Rubber Seal (Non Contact Type)
3. C3 Internal Clearance Larger Than Normal
4. P5 Dimensional And Running Accuracy To ISO Tolerance Class 5
5. /5K Grease: Kyodo Yushi / Multemp SRL (-40°C to +150°C)
6. Q20

Technical details

1. Availability 0 pcs
2. Brand NTN
3. Item number 6308T2XLLBC3P5/5KQ20 NTN
4. Category Deep Groove Ball Bearings Single Row

Weight and Dimensions

1. Weight (kg) 0.633

Product Properties

1. Bore C - Cylindrical Bore
2. Seal 2RU - Two Seals / Non Contact Type
3. Cage Type P - Plastic Molded Cage
4. External Modification No External Modification
5. Radial Internal Play C3 Internal Play (Higher than Cn)
6. Precision P5 Precision (Higher than P6)
7. Lubrication Higher and Lower Temperature Grease
8. Heat Stabilization No Heat Stabilization - Temperatures up to 120 °C
9. Special Treatment No Special Treatment
