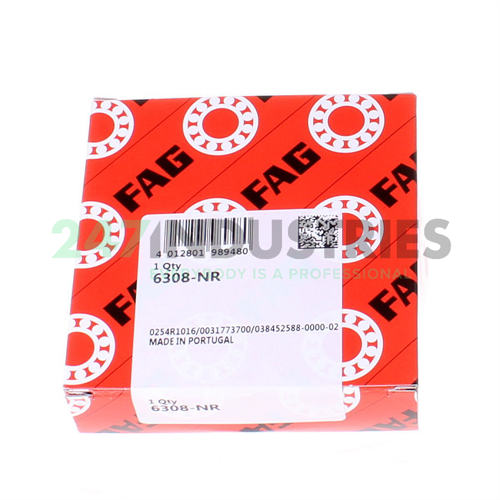

6308-NR FAG

All dimensions

1. Inner (d) MM 40
2. Outer (D) MM 90
3. Width (B) MM 23
4. Inner (d) Inch 1.5748
5. Outer (D) Inch 3.5433
6. Width (B) Inch 0.9055
7. Width (b) mm 23

Suffix description

1. NR Snap Ring Groove In Bearing Outer Ring And Appropriate Snap Ring

Technical details

1. Availability 10 pcs
2. Brand FAG
3. Item number 6308-NR FAG
4. Also known as 0384525880000

5. EAN 4012801989480
6. Category Deep Groove Ball Bearings Single Row

Weight and Dimensions

1. Weight (kg) 0.624

Product Properties

1. Bore C - Cylindrical Bore
2. Seal No Seal
3. Cage Type S - Steel or Standard Cage
4. External Modification NR - Groove and Snap Ring
5. Radial Internal Play Cn Normal Internal Play
6. Precision Standard Precision
7. Lubrication Standard Lubrication
8. Heat Stabilization No Heat Stabilization - Temperatures up to 120 °C
9. Special Treatment No Special Treatment

Data from Schaeffler (medias)

1. Basic static load rating, radial (C 0r) 25000
2. Limiting speed (n G) 10800
3. Reference speed (n ϑr) 9000
4. ECLASS number 23-05-08-01
5. ECLASS2 number 23-05-08-01
