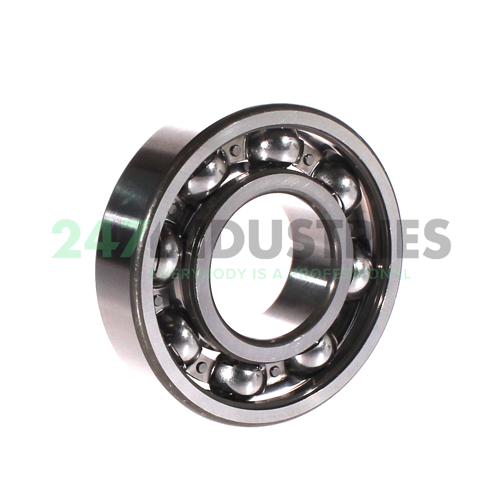

6308-C-C3 FAG

All dimensions

1. Inner (d) MM 40
2. Outer (D) MM 90
3. Width (B) MM 23
4. Inner (d) Inch 1.5748
5. Outer (D) Inch 3.5433
6. Width (B) Inch 0.9055
7. Width (b) mm 23

Suffix description

1. C Deep Groove Ball Bearings Of Generation C, Modified Internal Construction
2. C3 Internal Clearance Larger Than Normal

Technical details

1. Availability 108 pcs
2. Brand FAG
3. Item number 6308-C-C3 FAG
4. Also known as 0706822080030
   3016604500030
   6308/C3
   6308-C3

5. EAN 4047643293464
6. Category Deep Groove Ball Bearings Single Row

Weight and Dimensions

1. Weight (kg) 0.633

Product Properties

1. Bore C - Cylindrical Bore
2. Seal No Seal
3. Cage Type S - Steel or Standard Cage
4. External Modification No External Modification
5. Radial Internal Play C3 Internal Play (Higher than Cn)
6. Precision Standard Precision
7. Lubrication Standard Lubrication
8. Heat Stabilization No Heat Stabilization - Temperatures up to 120 °C
9. Special Treatment No Special Treatment

Data from Schaeffler (medias)

1. Radial Static Load Rating C0r (N) 25000
2. Radial Dynamic Load Rating Cr (N) 47000
3. Limiting speed (n G) 11800
4. Reference speed (n ϑr) 9900
5. ECLASS number 23-05-08-01
6. ECLASS2 number 23-05-08-01
7. Medias description Deep groove ball bearings 63..-C, modified internal construction (Generation C), main dimensions to DIN 625-1
