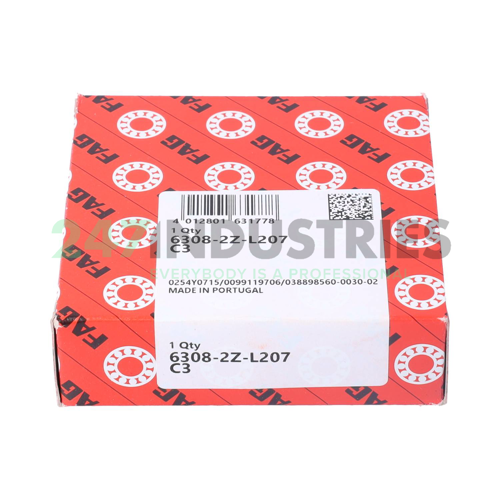

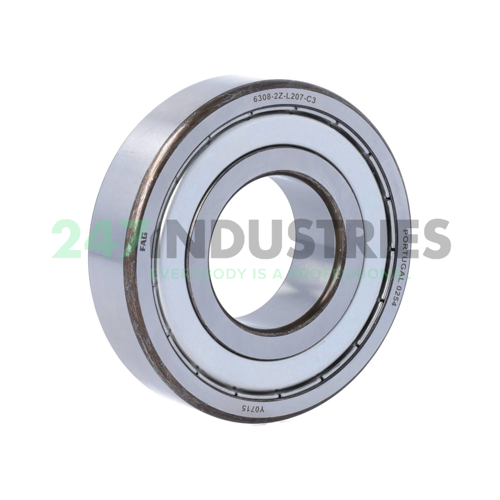

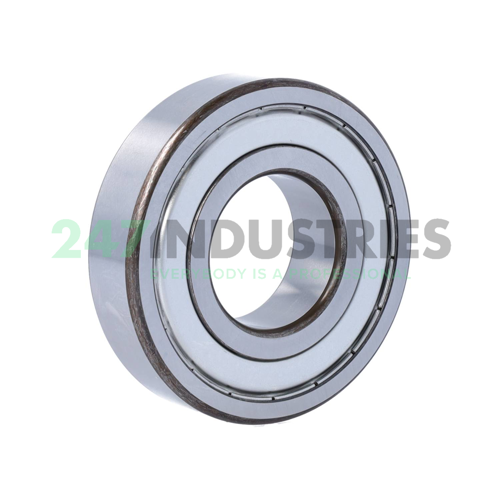

6308-2Z-L207-C3 FAG

All dimensions

1. Inner (d) MM 40
2. Outer (D) MM 90
3. Width (B) MM 23
4. Inner (d) Inch 1.5748
5. Outer (D) Inch 3.5433
6. Width (B) Inch 0.9055
7. Width (b) mm 23

Suffix description

1. 2Z Non-Contact Sealing Shield On Both Sides (Sheet Metal Gap Seal)
2. L207 Grease Filling With Arcanol L207 (High Temperature Grease)
3. C3 Internal Clearance Larger Than Normal

Technical details

1. Availability 0 pcs
2. Brand FAG
3. Item number 6308-2Z-L207-C3 FAG
4. Also known as 0388985600030
   6308-C-2Z-L207-C3

5. EAN 4012801631778
6. Category Deep Groove Ball Bearings Single Row

Weight and Dimensions

1. Weight (kg) 0.643

Product Properties

1. Bore C - Cylindrical Bore
2. Seal ZZ/2Z - Steel Seal on Two Sides
3. Cage Type S - Steel or Standard Cage
4. External Modification No External Modification
5. Radial Internal Play C3 Internal Play (Higher than Cn)
6. Precision Standard Precision
7. Lubrication 2 - High Temperature Grease
8. Heat Stabilization No Heat Stabilization - Temperatures up to 120 °C
9. Special Treatment No Special Treatment

Data from Schaeffler (medias)

1. Radial Static Load Rating C0r (N) 25000
2. Radial Dynamic Load Rating Cr (N) 45500
3. Limiting speed (n G) 9100
4. Reference speed (n ϑr) 9000
5. ECLASS number 23-05-08-01
6. ECLASS2 number 23-05-08-01
7. Medias description Deep groove ball bearing 63..-2Z, single row, cf. DIN 625-1
