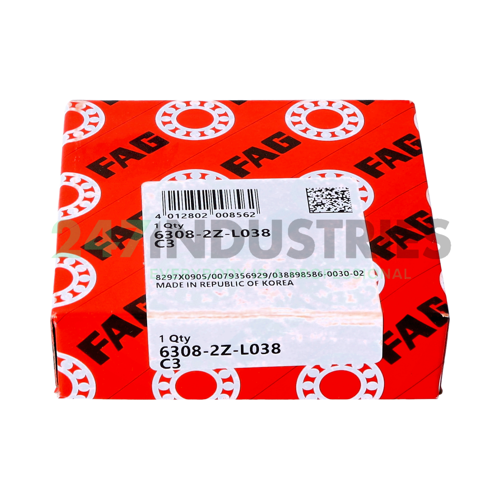

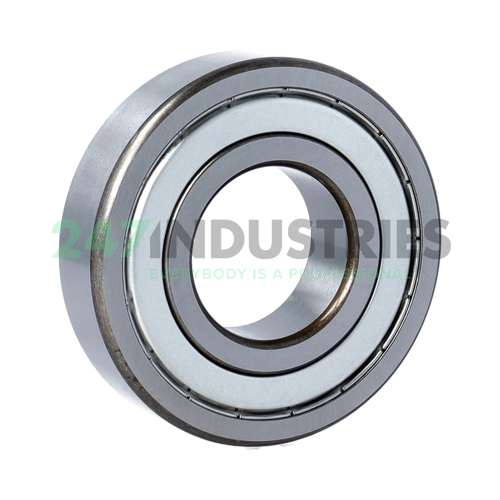

6308-2Z-L038-C3 FAG

All dimensions

1. Inner (d) MM 40
2. Outer (D) MM 90
3. Width (B) MM 23
4. Inner (d) Inch 1.5748
5. Outer (D) Inch 3.5433
6. Width (B) Inch 0.9055
7. Width (b) mm 23

Suffix description

1. 2Z Non-Contact Sealing Shield On Both Sides (Sheet Metal Gap Seal)
2. L038 Arcanol Grease Medium Temperature -25ºC/+130ºC
3. C3 Internal Clearance Larger Than Normal

Technical details

1. Availability 30 pcs on Thu 22 Jan
2. Brand FAG
3. Item number 6308-2Z-L038-C3 FAG
4. Also known as 0388985860030

5. EAN 4012802008562
6. Category Deep Groove Ball Bearings Single Row

Weight and Dimensions

1. Weight (kg) 0.643

Product Properties

1. Bore C - Cylindrical Bore
2. Seal ZZ/2Z - Steel Seal on Two Sides
3. Cage Type S - Steel or Standard Cage
4. External Modification No External Modification
5. Radial Internal Play C3 Internal Play (Higher than Cn)
6. Precision Standard Precision
7. Lubrication Standard Lubrication
8. Heat Stabilization No Heat Stabilization - Temperatures up to 120 °C
9. Special Treatment No Special Treatment

Data from Schaeffler (medias)

1. Basic static load rating, radial (C 0r) 25000
2. Limiting speed (n G) 9100
3. Reference speed (n ϑr) 9000
