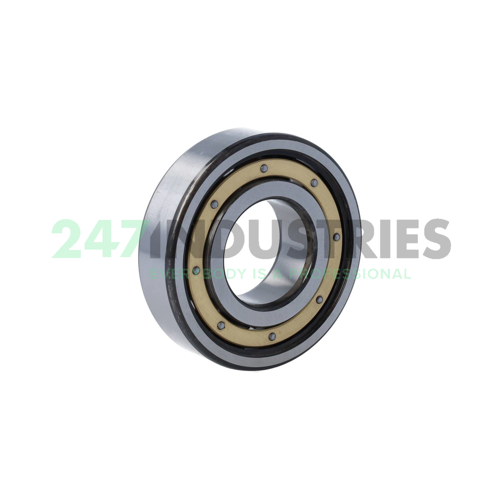

6307M/C3 SKF

All dimensions

1. Inner (d) MM 35
2. Outer (D) MM 80
3. Width (B) MM 21
4. Inner (d) Inch 1.378
5. Outer (D) Inch 3.1496
6. Width (B) Inch 0.8268

Suffix description

1. M Machined Brass Cage, Ball Centered; Different Designs And Material Grades Are Identified By A Figure Following The M, e.g. M2
2. C3 Internal Clearance Larger Than Normal

Technical details

1. Availability 15 pcs
2. Brand SKF
3. Item number 6307M/C3 SKF
4. Also known as 6307-M-C3

5. EAN 7316570617740
6. Category Deep Groove Ball Bearings Single Row

Weight and Dimensions

1. Weight (kg) 0.457

Product Properties

1. Bore C - Cylindrical Bore
2. Seal No Seal
3. Cage Type M - Brass Cage
4. External Modification No External Modification
5. Radial Internal Play C3 Internal Play (Higher than Cn)
6. Precision Standard Precision
7. Lubrication Standard Lubrication
8. Heat Stabilization No Heat Stabilization - Temperatures up to 120 °C
9. Special Treatment No Special Treatment
