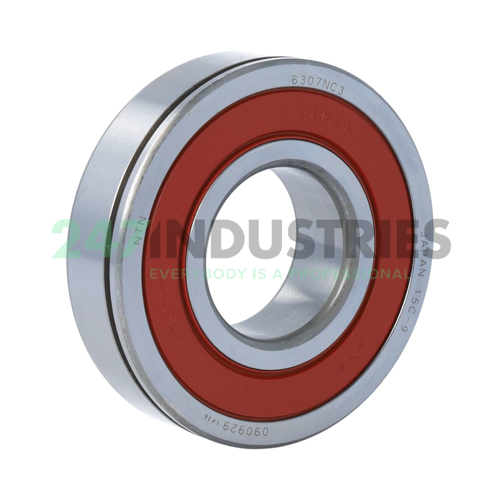

6307LLUNC3/5K NTN

All dimensions

1. Inner (d) MM 35
2. Outer (D) MM 80
3. Width (B) MM 21
4. Inner (d) Inch 1.378
5. Outer (D) Inch 3.1496
6. Width (B) Inch 0.8268

Suffix description

1. LLU Rubber Seals At Each Side Of The Bearing
2. N Snap Ring Groove In The Outer Ring
3. C3 Internal Clearance Larger Than Normal
4. 5K Grease: Kyodo Yushi / Multemp SRL (-40°C to +150°C)

Technical details

1. Availability 0 pcs
2. Brand NTN
3. Item number 6307LLUNC3/5K NTN
4. Also known as 6307 2RS N C3
   6307-2RS1N/C3
   6307-2RSR-N-C3
   6307LLUNC3

5. Category Deep Groove Ball Bearings Single Row

Weight and Dimensions

1. Weight (kg) 0.465

Product Properties

1. Bore C - Cylindrical Bore
2. Seal 2RS - Rubber Seal on Two Sides
3. Cage Type S - Steel or Standard Cage
4. External Modification N - Snap Ring Groove in Outer Ring
5. Radial Internal Play C3 Internal Play (Higher than Cn)
6. Precision Standard Precision
7. Lubrication Standard Lubrication
8. Heat Stabilization S0 - Temperatures up to 150 °C
9. Special Treatment No Special Treatment
