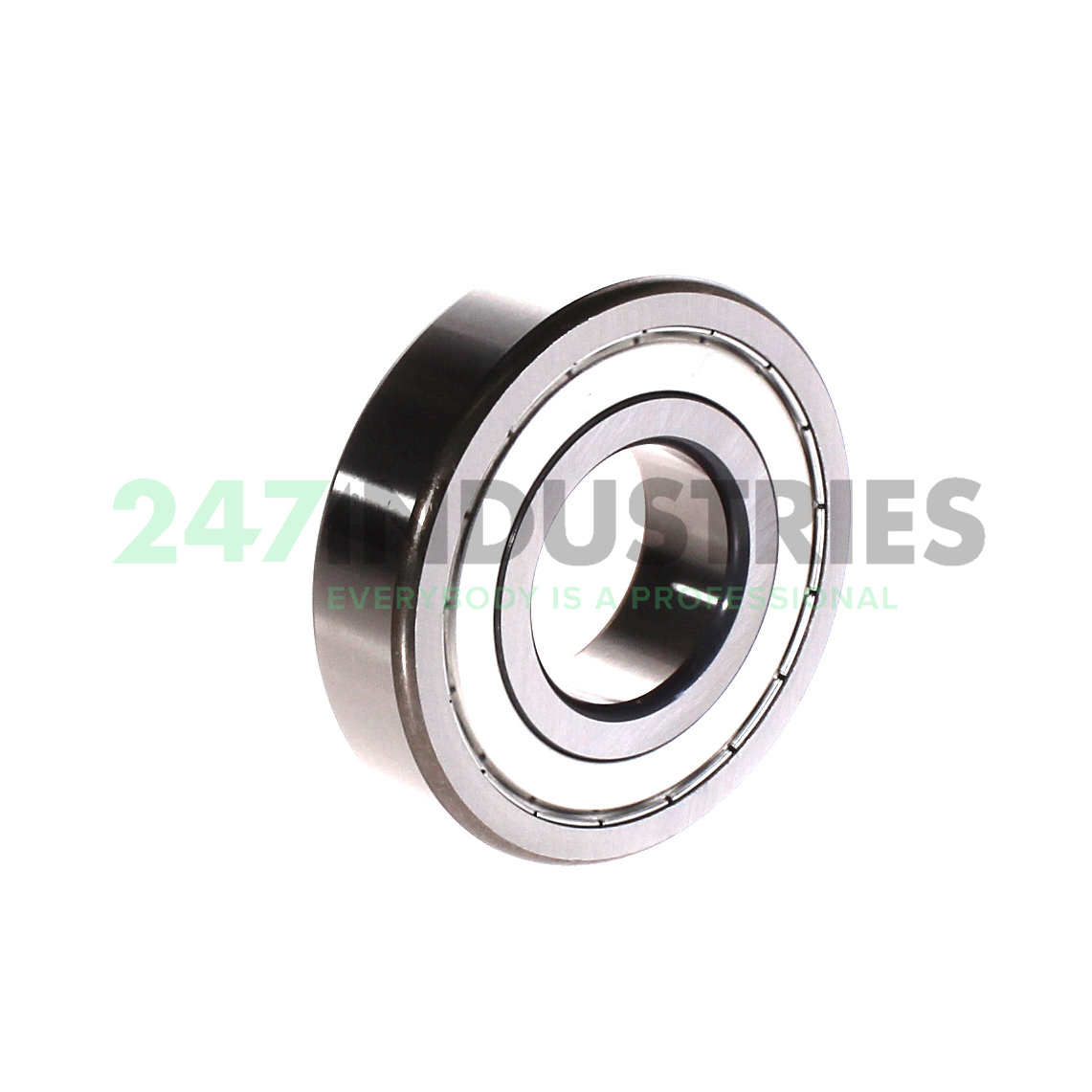

6307.2ZR.C3.L38 FAG

All dimensions

1. Inner (d) MM 35
2. Outer (D) MM 80
3. Width (B) MM 21
4. Inner (d) Inch 1.378
5. Outer (D) Inch 3.1496
6. Width (B) Inch 0.8268

Suffix description

1. 2Z Non-Contact Sealing Shield On Both Sides (Sheet Metal Gap Seal)
2. C3 Internal Clearance Larger Than Normal
3. L38 Arcanol Grease Medium Temperature -25ºC/+130ºC

Technical details

1. Availability 16 pcs
2. Brand FAG
3. Item number 6307.2ZR.C3.L38 FAG
4. Also known as 6307-2Z/C3
   6307-2Z-C3
   6307-C-2Z-C3

5. Category Deep Groove Ball Bearings Single Row

Weight and Dimensions

1. Weight (kg) 0.464

Product Properties

1. Bore C - Cylindrical Bore
2. Seal ZZ/2Z - Steel Seal on Two Sides
3. Cage Type S - Steel or Standard Cage
4. External Modification No External Modification
5. Radial Internal Play C3 Internal Play (Higher than Cn)
6. Precision Standard Precision
7. Lubrication Higher and Lower Temperature Grease
8. Heat Stabilization No Heat Stabilization - Temperatures up to 120 °C
9. Special Treatment No Special Treatment

Downloads and links

1. Link to manufacturer Link to manufacturer
