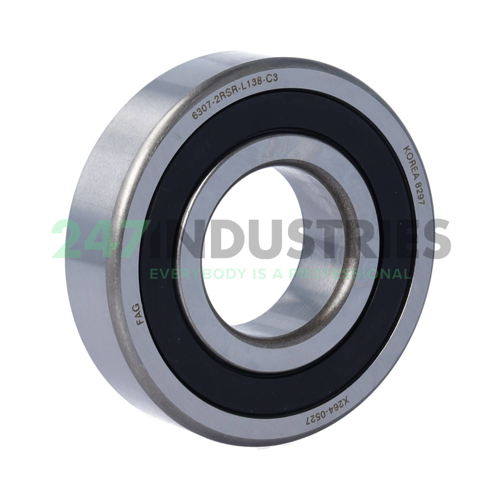

6307-2RSR-L138-C3 FAG

All dimensions

1. Inner (d) MM 35
2. Outer (D) MM 80
3. Width (B) MM 21
4. Inner (d) Inch 1.378
5. Outer (D) Inch 3.1496
6. Width (B) Inch 0.8268

Suffix description

1. 2RSR Rubber Seals At Each Side Of The Bearing
2. L138 NS Hi-Lube Grease Lithium Soap, Temperature Range -30 ~ 130ºC
3. C3 Internal Clearance Larger Than Normal

Technical details

1. Availability 25 pcs
2. Brand FAG
3. Item number 6307-2RSR-L138-C3 FAG
4. Also known as 0859080530030
   6307 2RS C3
   6307-2RS1/C3
   6307-2RSR-C3
   6307DDUC3
   6307EEC3
   6307LLUC3

5. EAN 4064328101173
6. Category Deep Groove Ball Bearings Single Row

Weight and Dimensions

1. Weight (kg) 0.465

Product Properties

1. Bore C - Cylindrical Bore
2. Seal 2RS - Rubber Seal on Two Sides
3. Cage Type S - Steel or Standard Cage
4. External Modification No External Modification
5. Radial Internal Play C3 Internal Play (Higher than Cn)
6. Precision Standard Precision
7. Lubrication Low Temperature Grease
8. Heat Stabilization No Heat Stabilization - Temperatures up to 120 °C
9. Special Treatment No Special Treatment
