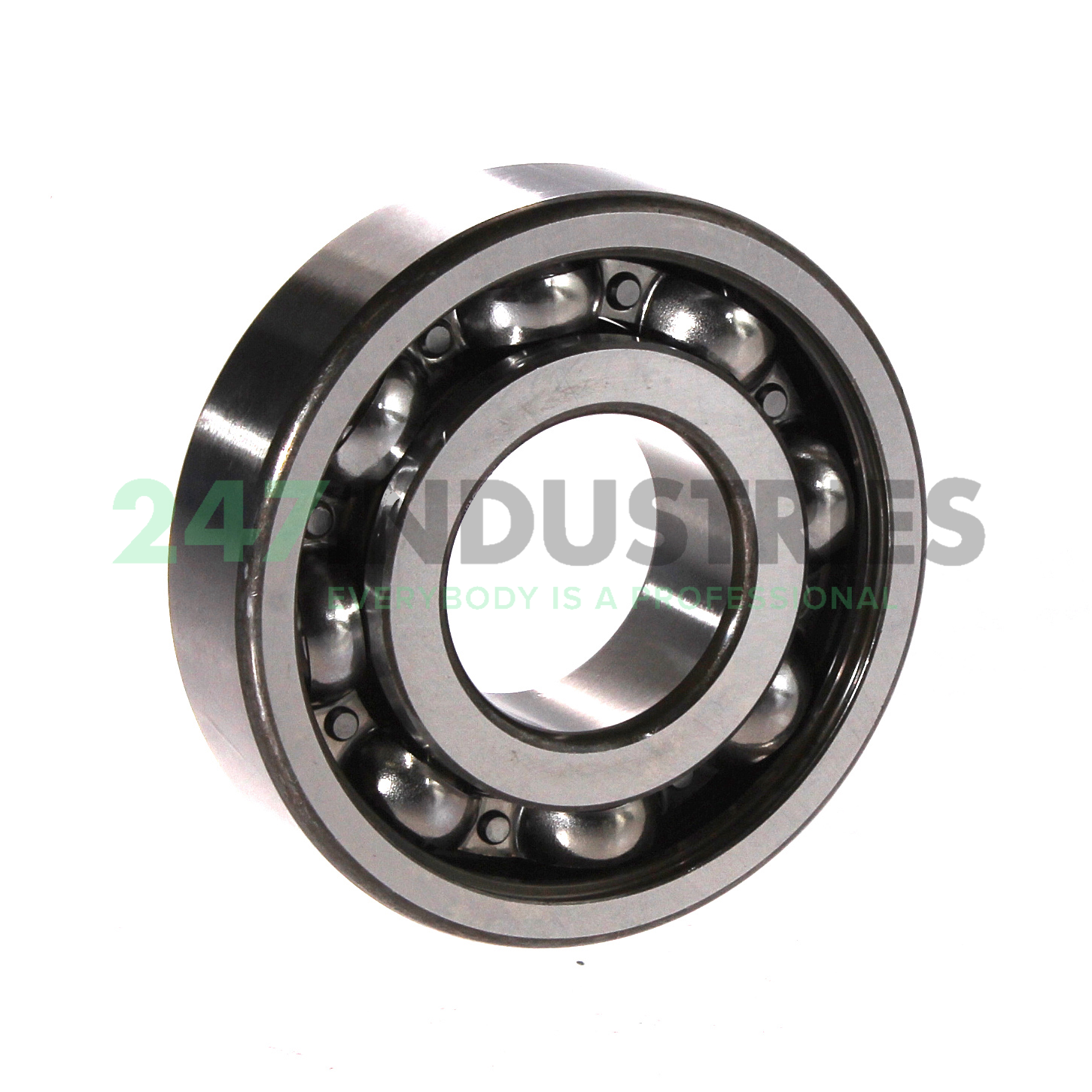

6306-Z-C3 FAG

All dimensions

1. Inner (d) MM 30
2. Outer (D) MM 72
3. Width (B) MM 19
4. Inner (d) Inch 1.1811
5. Outer (D) Inch 2.8346
6. Width (B) Inch 0.748
7. Width (b) mm 19

Suffix description

1. Z Shield Of Pressed Sheet Steel On One Side Of The Bearing
2. C3 Internal Clearance Larger Than Normal

Technical details

1. Availability 24 pcs
2. Brand FAG
3. Item number 6306-Z-C3 FAG
4. Also known as 0167232010030
   6306-C-Z-C3

5. EAN 4012801073745
6. Category Deep Groove Ball Bearings Single Row

Weight and Dimensions

1. Weight (kg) 0.348

Product Properties

1. Bore C - Cylindrical Bore
2. Seal Z - Steel Seal on One Side
3. Cage Type S - Steel or Standard Cage
4. External Modification No External Modification
5. Radial Internal Play C3 Internal Play (Higher than Cn)
6. Precision Standard Precision
7. Lubrication Standard Lubrication
8. Heat Stabilization No Heat Stabilization - Temperatures up to 120 °C
9. Special Treatment No Special Treatment

Data from Schaeffler (medias)

1. Basic static load rating, radial (C 0r) 16200
2. Limiting speed (n G) 13700
3. Reference speed (n ϑr) 10500
4. ECLASS number 23-05-08-01
5. ECLASS2 number 23-05-08-01
