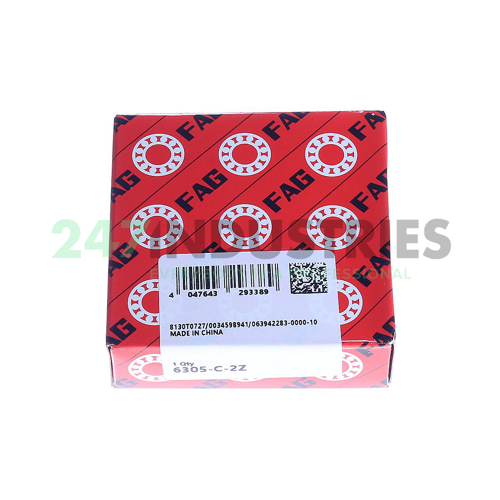

6305-C-2Z FAG

All dimensions

1. Inner (d) MM 25
2. Outer (D) MM 62
3. Width (B) MM 17
4. Inner (d) Inch 0.9843
5. Outer (D) Inch 2.4409
6. Width (B) Inch 0.6693
7. Width (b) mm 17

Suffix description

1. C Deep Groove Ball Bearings Of Generation C, Modified Internal Construction
2. 2Z Gap Seals On Both Sides

Technical details

1. Availability 247 pcs
2. Brand FAG
3. Item number 6305-C-2Z FAG
4. Also known as 0639422830000
   0955624000000
   6305-2Z

5. EAN 4047643293389
6. Category Deep Groove Ball Bearings Single Row

Weight and Dimensions

1. Weight (kg) 0.234

Product Properties

1. Bore C - Cylindrical Bore
2. Seal ZZ/2Z - Steel Seal on Two Sides
3. Cage Type S - Steel or Standard Cage
4. External Modification No External Modification
5. Radial Internal Play Cn Normal Internal Play
6. Precision Standard Precision
7. Lubrication Standard Lubrication
8. Heat Stabilization No Heat Stabilization - Temperatures up to 120 °C
9. Special Treatment No Special Treatment

Data from Schaeffler (medias)

1. Radial Static Load Rating C0r (N) 11500
2. Radial Dynamic Load Rating Cr (N) 24700
3. Limiting speed (n G) 15100
4. Reference speed (n ϑr) 13500
5. ECLASS number 23-05-08-01
6. ECLASS2 number 23-05-08-01
7. Medias description Deep groove ball bearing 63..-C-2Z, single row, cf. DIN 625-1
