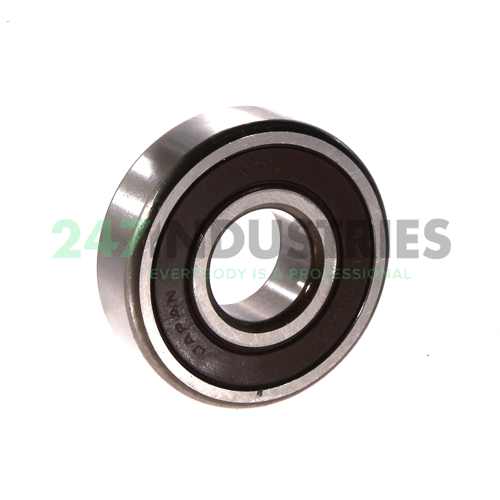

6304LLUAC3/L417QP NTN

All dimensions

1. Inner (d) MM 20
2. Outer (D) MM 52
3. Width (B) MM 15
4. Inner (d) Inch 0.7874
5. Outer (D) Inch 2.0472
6. Width (B) Inch 0.5906

Suffix description

1. LLUA Polyacrylic Rubber Seals
2. C3 Internal Clearance Larger Than Normal
3. L417 Grease: Kyodo Yushi/E5 (-30 to +180°C)
4. QP Grease Fill 27,5 to 32,5%

Technical details

1. Availability 143 pcs
2. Brand NTN
3. Item number 6304LLUAC3/L417QP NTN
4. Also known as 6304LLUAC3

5. Category Deep Groove Ball Bearings Single Row

Weight and Dimensions

1. Weight (kg) 0.143

Product Properties

1. Bore C - Cylindrical Bore
2. Seal 2RS - Rubber Seal on Two Sides
3. Cage Type S - Steel or Standard Cage
4. External Modification No External Modification
5. Radial Internal Play C3 Internal Play (Higher than Cn)
6. Precision Standard Precision
7. Lubrication Higher and Lower Temperature Grease
8. Heat Stabilization No Heat Stabilization - Temperatures up to 120 °C
9. Special Treatment No Special Treatment
