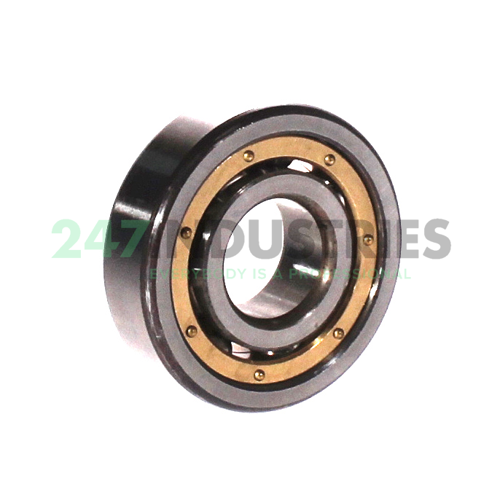

6304-MA-F59-C3 FAG

All dimensions

1. Inner (d) MM 20
2. Outer (D) MM 52
3. Width (B) MM 15
4. Inner (d) Inch 0.7874
5. Outer (D) Inch 2.0472
6. Width (B) Inch 0.5906

Suffix description

1. MA Machined Brass Cage, Outer Ring Guided
2. F59 Replaced By
3. H68 Bearing And Bearing Parts For Voith Getriebe KG, Heidenheim; For Special Cage Design, Width Tolerance, Radial Runout And Bearing Clearance See Specifications
4. C3 Internal Clearance Larger Than Normal

Technical details

1. Availability 34 pcs
2. Brand FAG
3. Item number 6304-MA-F59-C3 FAG
4. Also known as 6304ECMA/C3B20

5. Category Deep Groove Ball Bearings Single Row

Weight and Dimensions

1. Weight (kg) 0.168

Product Properties

1. Bore C - Cylindrical Bore
2. Seal No Seal
3. Cage Type MA - Brass Cage, Centered on Outer Ring
4. External Modification No External Modification
5. Radial Internal Play C3 Internal Play (Higher than Cn)
6. Precision A2 - Reduced Width Tolerance
7. Lubrication Standard Lubrication
8. Heat Stabilization No Heat Stabilization - Temperatures up to 120 °C
9. Special Treatment No Special Treatment
