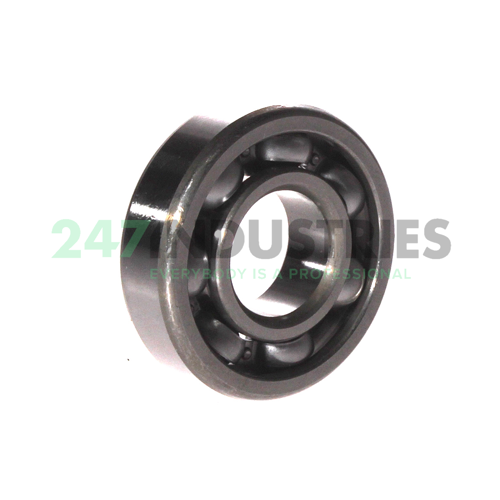

6304/22X Nachi

All dimensions

1. Inner (d) MM 22
2. Outer (D) MM 52
3. Width (B) MM 15
4. Inner (d) Inch 0.8661
5. Outer (D) Inch 2.0472
6. Width (B) Inch 0.5906

Suffix description

1. X Boundary Dimensions Not In Accordance With ISO Dimension Series

Technical details

1. Availability 0 pcs
2. Brand Nachi
3. Item number 6304/22X Nachi
4. Category Deep Groove Ball Bearings Single Row

Weight and Dimensions

1. Weight (kg) 0.144

Product Properties

1. Bore C - Cylindrical Bore
2. Seal No Seal
3. Cage Type S - Steel or Standard Cage
4. External Modification No External Modification
5. Radial Internal Play Cn Normal Internal Play
6. Precision Standard Precision
7. Lubrication Standard Lubrication
8. Heat Stabilization No Heat Stabilization - Temperatures up to 120 °C
9. Special Treatment No Special Treatment
