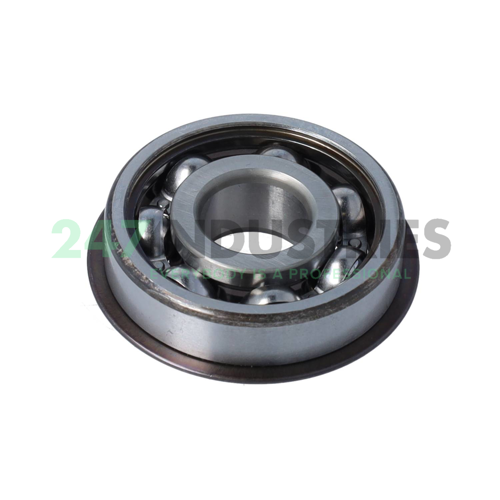

6303NR/C3 SKF

All dimensions

1. Inner (d) MM 17
2. Outer (D) MM 47
3. Width (B) MM 14
4. Inner (d) Inch 0.6693
5. Outer (D) Inch 1.8504
6. Width (B) Inch 0.5512

Suffix description

1. NR Snap Ring Groove In Bearing Outer Ring And Appropriate Snap Ring
2. C3 Internal Clearance Larger Than Normal

Technical details

1. Availability 13 pcs
2. Brand SKF
3. Item number 6303NR/C3 SKF
4. EAN 7316571370347
5. Category Deep Groove Ball Bearings Single Row

Weight and Dimensions

1. Weight (kg) 0.115

Product Properties

1. Bore C - Cylindrical Bore
2. Seal No Seal
3. Cage Type S - Steel or Standard Cage
4. External Modification NR - Groove and Snap Ring
5. Radial Internal Play C3 Internal Play (Higher than Cn)
6. Precision Standard Precision
7. Lubrication Standard Lubrication
8. Heat Stabilization No Heat Stabilization - Temperatures up to 120 °C
9. Special Treatment No Special Treatment
