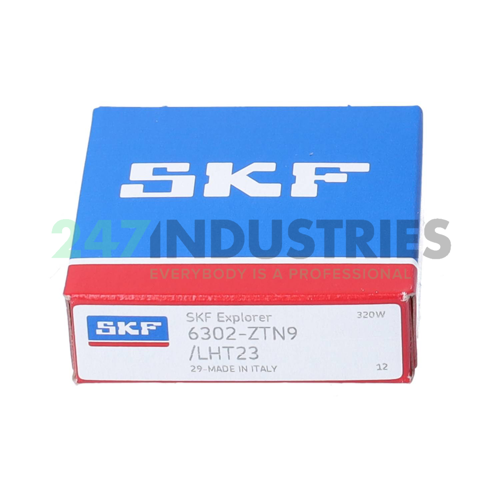

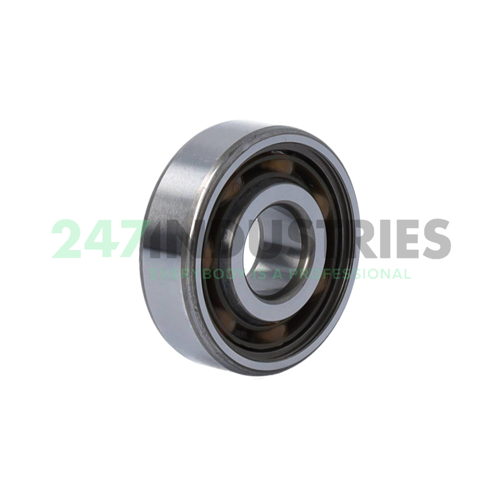

6302-ZTN9/LHT23 SKF

All dimensions

1. Inner (d) MM 15
2. Outer (D) MM 42
3. Width (B) MM 13
4. Inner (d) Inch 0.5906
5. Outer (D) Inch 1.6535
6. Width (B) Inch 0.5118

Suffix description

1. Z Shield Of Pressed Sheet Steel On One Side Of The Bearing
2. TN9 Injection Moulded Snap-Type Cage Of Glass Fibre Reinforced Polyamide 6,6, Ball Centered
3. LHT23 Lithium Grease, Wide Range, 26 cSt @ 40°C, -50°C/+140°C. A Two-Figure Number Following LHT Identifies The Actual Grease

Technical details

1. Availability 59 pcs
2. Brand SKF
3. Item number 6302-ZTN9/LHT23 SKF
4. Also known as 6302-ZTN9

5. EAN 7316570623284
6. Category Deep Groove Ball Bearings Single Row

Weight and Dimensions

1. Weight (kg) 0.082

Product Properties

1. Bore C - Cylindrical Bore
2. Seal Z - Steel Seal on One Side
3. Cage Type P - Plastic Molded Cage
4. External Modification No External Modification
5. Radial Internal Play Cn Normal Internal Play
6. Precision Standard Precision
7. Lubrication L - -50°C/+140°C
8. Heat Stabilization No Heat Stabilization - Temperatures up to 120 °C
9. Special Treatment No Special Treatment
