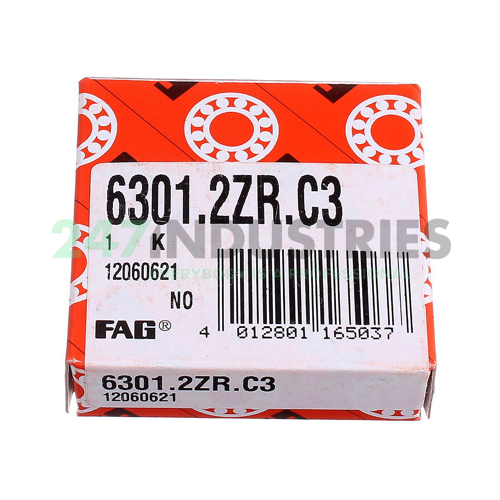

6301.2ZR.C3 FAG

All dimensions

1. Inner (d) MM 12
2. Outer (D) MM 37
3. Width (B) MM 12
4. Inner (d) Inch 0.4724
5. Outer (D) Inch 1.4567
6. Width (B) Inch 0.4724

Suffix description

1. 2ZR Non-Contact Sealing Shield On Both Sides (Sheet Metal Gap Seal)
2. C3 Internal Clearance Larger Than Normal

Technical details

1. Availability 1,999 pcs
2. Brand FAG
3. Item number 6301.2ZR.C3 FAG
4. Category Deep Groove Ball Bearings Single Row

Weight and Dimensions

1. Weight (kg) 0.061

Product Properties

1. Bore C - Cylindrical Bore
2. Seal ZZ/2Z - Steel Seal on Two Sides
3. Cage Type S - Steel or Standard Cage
4. External Modification No External Modification
5. Radial Internal Play C3 Internal Play (Higher than Cn)
6. Precision Standard Precision
7. Lubrication Standard Lubrication
8. Heat Stabilization No Heat Stabilization - Temperatures up to 120 °C
9. Special Treatment No Special Treatment
