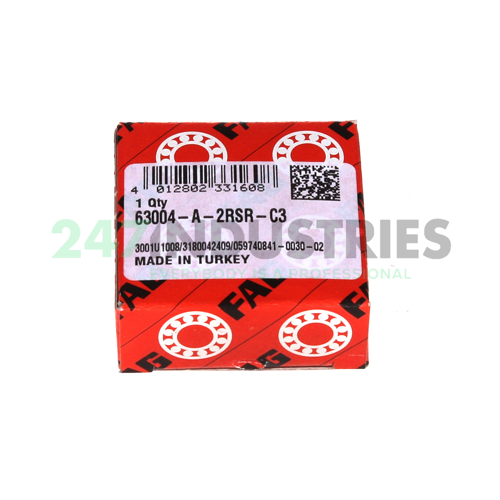

63004-A-2RSR-C3 FAG

All dimensions

1. Inner (d) MM 20
2. Outer (D) MM 42
3. Width (B) MM 16
4. Inner (d) Inch 0.7874
5. Outer (D) Inch 1.6535
6. Width (B) Inch 0.6299
7. Width (b) mm 16

Suffix description

1. A Internal Design Modification
2. 2RSR Rubber Seals At Each Side Of The Bearing
3. C3 Internal Clearance Larger Than Normal

Technical details

1. Availability 69 pcs
2. Brand FAG
3. Item number 63004-A-2RSR-C3 FAG
4. Also known as 0597408410030

5. EAN 4012802331608
6. Category Deep Groove Ball Bearings Single Row

Weight and Dimensions

1. Weight (kg) 0.086

Product Properties

1. Bore C - Cylindrical Bore
2. Seal 2RS - Rubber Seal on Two Sides
3. Cage Type S - Steel or Standard Cage
4. External Modification No External Modification
5. Radial Internal Play C3 Internal Play (Higher than Cn)
6. Precision Standard Precision
7. Lubrication Standard Lubrication
8. Heat Stabilization No Heat Stabilization - Temperatures up to 120 °C
9. Special Treatment No Special Treatment

Data from Schaeffler (medias)

1. Basic static load rating, radial (C 0r) 5030
2. Limiting speed (n G) 9700
3. ECLASS number 23-05-08-01
4. ECLASS2 number 23-05-08-01
